EtCO2 Sampling Lines

This capnoline multipack includes (10) of item # 177268. Key Benefits: * Integrated O2 tubing for supplemental oxygen delivery * Uni-junction™ technology is designed to ensure proper sampling for patients who alternate between oral and nasal breathing * Oral Scoop design has wide surface area to provide breath capture even in the presence of shallow breathing * Oxygen flows from holes in front of nasal prongs and improves humidity of oxygen * Delivers oxygen flow up to 5 L/min and can deliver above 5 L/min using external oxygen delivery * Kink-resistant tubing engineered to mitigate interrupted oxygen flow and resulting alarms, meets ISO 13544-2 compliance standard Features: * Size: Adult/Intermediate (one size fits adolescents through adults) * Type: Oral/Nasal * Disposable * 6.5ft O2 Tubing with female connector * Non-intubated patient * Short-term use * 0.2-micron sterilizing-grade filter designed to help reduce risk of biohazard contamination of monitor

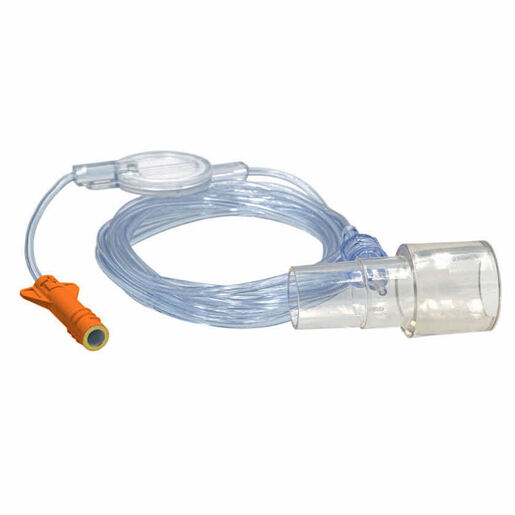

The FilterLine® Set is designed for use with Microstream™-enabled capnography monitors. Features: * Size: Adult/Pediatric * Intended for use with ETT tube size > 4.5mm * Designed for single patient use * 6.5ft tubing * Intubated patient * Short-term use * Disposable * Latex free * Compatible in MRI environment * 0.2-micron sterilizing-grade filter designed to help reduce risk of biohazard contamination of the monitor * Adapter Dead Space: < 6.6cc * Weight: 7.0g Key Benefits: * Integrated, single-piece airway gas sampling lines comprised of the patient cannula or airway adapter, water trap and a sterilizing grade filter that is designed to reduce the risk of biohazard contamination of the patient monitor * Uni-junction™ technology is designed to ensure proper sampling for patients who alternate between oral and nasal breathing * Oral Scoop design has wide surface area to provide breath capture even in the presence of shallow breathing * Oxygen flows from holes in front of nasal prongs and improves humidity of O2 * Delivers O2 flow up to 5 L/min and can deliver above 5 L/min using external O2 delivery, e.g. through a mask, without affecting CO2 measurement values

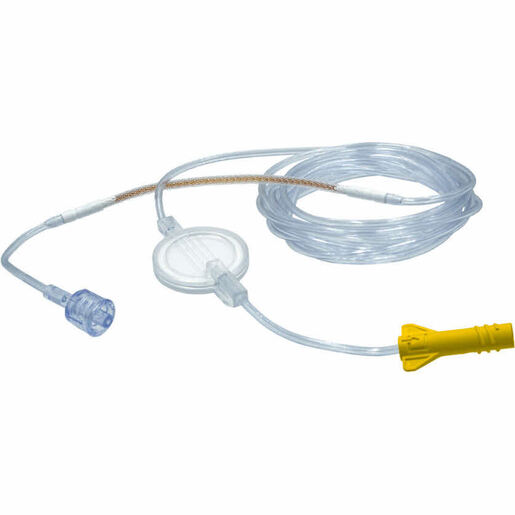

These Microstream™ technology sampling lines have an improved neutral scent and soft, kink-resistant tubing. The drying element on long duration sampling lines has been moved further down the tubing and away from the patient’s face. The new placement maintains the integrity and trusted drying performance. Features: * Standard FilterLine® Length: 200cm / 6.5ft * Long FilterLine® Length: 400cm / 13ft * Single patient use * Latex Free * Packaged in 25 units unless otherwise specified (items 177268 & 177653 are 100 count) * Adult and pediatric products are intended for use with ETT tube size > 4.5mm * The adapter dead space is < 6.6cc and the weight is 7.0gm * Infant/neonate products are intended for use with ETT tube size ≤ 4.5mm * The adapter dead space is < 0.5cc and the weight is 3.8g * Use of a FilterLine® etCO2 sampling line with H in its name (indicating that it is for use in humidified environments) during MRI scanning may cause interference. The use of non-H sampling lines is advised. (item # 2722-43301)

The Nasal and the NIV Line (non-invasive ventilation) CO2 sampling lines enable continuous non-intubated monitoring of etCO2 when nasal sampling is preferred. Built in water-trap with hydrophobic filter prevents moisture from entering the monitor while maintaining the laminar flow and excellent waveform.* Ideal for use underneath oxygen, CPAP, bi-Level device or NPPV mask* The filter design and small diameter of the circuit (1.0mm I.D. microbore tubing) improve accuracy and response time

* Disposable * Compatible with LifePak® 12, LifePak® 15 and Philips MRx * 2-port design - reduces clogging from moisture and secretions * Airway adapter- captures accurate readings with small sample lines * Built-in water trap with hydrophobic filter - prevents moisture from entering the monitor while maintaining the laminar flow and excellent waveform

Smart CapnoLine EtCO2 circuits are ideal for nonintubated applications such as monitoring ventilatory status in asthma, bronchospasm, COPD, and procedural sedation–situations where oral ventilation can occur and cause inaccurate readings with nasal only lines. The ”smart” design facilitates a crisp continuous waveform and accurate data for patients alternating between oral and nasal breathing. Smart CapnoLine monitors exhaled CO2 from oral and/or nasal ventilation. * Size: Adult/Intermediate * Tubing: 255cm

The O2/CO2 Nasal FilterLine breath CO2 sampling line enables continuous non-intubated monitoring of EtCO2 when nasal only sampling is preferred and oxygen delivery is required. * Size: Pediatric * Standard length is 200cm or 6.5ft.

* Length: 13 feet * The patented family of FilterLine™ etCO2 sampling lines is designed for use with Microstream®-enabled capnography monitors * Available for neonates through adults

* Size: Infant/Neonate * Non-intubated, long term duration with 6.5ft oxygen tubing. * Nasal sampling may be preferred for use under a mask, when anatomical (facial) issues impede use of oral scoop, or when a patient is intolerant of oral scoop. * Contains Nafion® or alternate moisture reduction technology to aid in humidity control.

For ET tubes greater than 4.0mm...1/BXDM8000-0362

* For intubated patients

Oral/Nasal CO2 w/ O2 Sidestream LoFlo Cannula. For use with the Zoll M-Series and CCT.....1/BX8000-0358

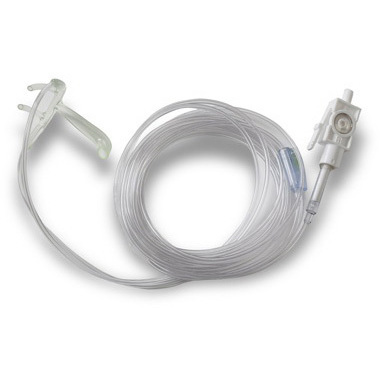

* Offers precise and accurate sampling with improved performance for CO2 monitoring of non-intubated patients who are either nose or mouth breathers * Patented Uni-Junction™ design assures oral and nasal sampling even at low tidal volumes, with minimal dilution of the CO2 waveform during O2 delivery * Surface area of oral prong to provide effective breath capture even in the presence of shallow breathing * Small diameter for the circuit (1.0mm ID microbore tubing) improve accuracy and response time * Ideal under masks for accurate CO2 monitoring during DPAP, bi-Level device or NPVV and high flow rate O2 delivery therapy * For use with most SideStream monitors

* 100 inch tube * Non-intubated gas capnography * Gas capnography with oxygen * Monitoring CO2/O2 for up to 12hr

* Single patient use* Adult/pediatric* For mainstream CO2 option

Moisture Trap With Filter features: * Disposable * Conventional water traps introduced problems when used to remove excessive moisture: * Air mixing which resulted in lower EtCO2 readings * Low Volume which interrupted patient monitoring * Nonin's flow-thru design, the moisture water trap eliminated air mixing which gives accurate EtCO2 monitoring * High capacity moisture trap that allows uninterrupted patient monitoring * With filter * For LifeSense® and RespSense™ Capnograph NO6024-000

* For use with MP2 * Size: adult/pediatric * Use with endotracheal tube size greater than 4.0mm * <5cc deadspace * Disposable

Single patient use. Oral/Nasal CO2 sampling only...1/BX8000-0354

Gas Manifold Filters: * For Use with: * Capnocheck® Plus * Capnocheck® Sleep * Advisor® BCI8208

Patient Attachment Kit: * For BCI Capnocheck II BCI8214

* Size: Adult/Pediatric * For 15mm or 22mm connection * For use with any Non-Microstream® enabled monitor

CAPNO2 Face masks with adapter designed for non-intubated adult patients. For use with the Zoll E, M & R series defibrillators.

* For use with Welch Allyn ProPaq and Atlas monitors * Patented Uni-Junction™ design - assures sampling from either the oral or nasal breathing source * O2 delivery system - provides comfortable delivery up to 5 lpm without dilution of CO2 sample; delivery via small pin-holes * Increased surface area of oral sampling prong - provides greater accuracy in the presence of low tidal volume
