IV Warmers

A blood warmer and IV fluid warmer, the Thermal Angel is a battery-powered disposable, lightweight easy to use portable blood and IV fluid warming device. The Thermal Angel blood warmer works in your environment.

• Disposable - No cleaning, maintenance or calibration
• Simple - train in minutes, sets up and warms up quickly, standard luers
• Portable - Stays with the patient, battery-powered, ultra battery 1, standard battery
• Compact - 9in/9OZ, Place near infusion site
• Easy to order packs - ultra emergency pack, standard emergency pack
• Areas of use - military and government, EMS, hospital, testimonials

The newest lightweight battery at 1.25lb, the thermal angel ultra battery 1 (TA-UB1) is now available. The new ultra battery 1 (TA-UB1) is 1/4 the weight and 1/4 the size of our standard battery (TA-BCE).

• Military and government
• Hospital

Built of rugged Cordura™ and lined with a layer of Thinsulate™ insulation and an inner lining of Mylar™ heat reflective material, this is the finest EMS fabric based iv fluid warmer on the market. Built with a snap-in electronics component, the Soft Sack iv fluid warmer can easily be re-manufactured to its original specification after years of service. If the fabric materials are overly soiled or damaged, snap out the electronics and repair or replace the bag.

• Fuse protected power supply
• Anodized aluminum heater housing
• Fuse protected circuit board controller
• Over therm fuse in heater
• 12 volt operation
• Optional 120V adapter
• Snap in aluminum electronics housing
• 3 Liter capacity
• Pouch for IV catheters, tubing and other IV accessories
• Insulated Cordura™ bag
• Mylar® heat reflective inner lining
• Four-point tie down ring for aviation

Power converters for Smithworks Medical Products.

It is the only IV warmer that can bring up to 4 liters of fluid up to body temperature and keep them ready for use as long as power is supplied. Just plug in the 12V power supply and forget it, all your IV’s will be body temperature, the moment you need them, no hassle. The entire case is surrounded with 2 layers of insulation. First a 1/2in closed cell foam providing structure as well as insulation, with an inner lining of Mylar™ heat reflective material.

• Fuse protected power supply
• Anodized aluminum heater housing
• Fuse protected circuit board controller
• 12 volt operation
• Optional 110V power supply
• Insulated Cordura™ Bag
• Mylar® heat reflective inner lining
• Optional insulated IV bag, and IV line insulators

TT661

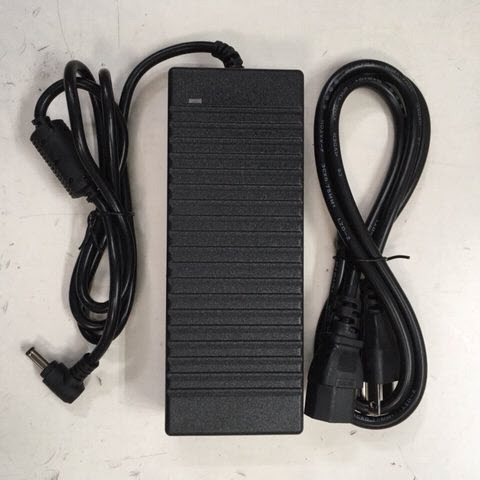

110 volt converter for Thomas Heating Pack and Thomas 4 liter IV Warmer.TT651

The standard battery (TA-BCE) is a rechargeable battery used to power the thermal angel TA-200.

• Included LEDs to display the charge level
• Can be recharged
• Does not require complete discharge before recharging
• Requires the standard battery charger for recharging
• The rechargeable standard battery is one way to operate the Thermal Angel TA-200

Utilizing existing cabinetry within your emergency vehicle, space allocation for this equipment is minimized or eliminated. The Floor Mount iv fluid warmer™ is user friendly, assures accurate warming of your iv solutions, and maintains a normal body temperature infusion for year round rapid interventions of shock, burn patients, pediatric emergencies, geriatric care and care of patients unable to maintain body temperature as well as environmental emergencies. Controlled to a temperature range of 36 to 38 degrees Celsius (99 to 101 degrees F), the Floor Mount iv fluid warmer™ delivers a thermal normal iv solution consistently. This helps to reduce the risk of induced or secondary hypothermia while providing greater patient comfort. Installation is easily accomplished with minimal effort. It is a straight forward process equipped with a wiring harness and side enclosures. A first time installation should take about an hour.J7900

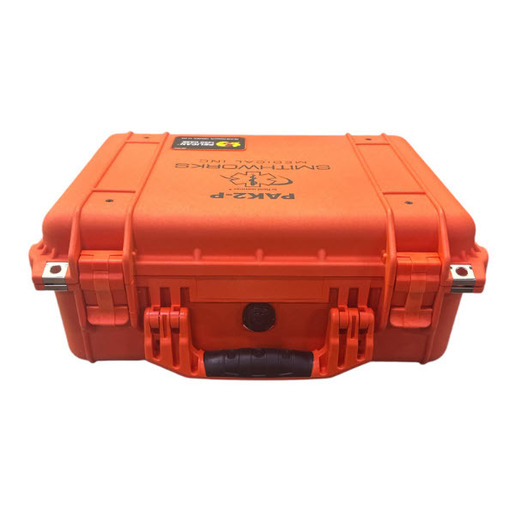

The PAK2-P iv fluid warmer™ is user friendly, assures accurate warming of your iv solutions and maintains a normal body temperature for year round rapid interventions of shock, burn patients, pediatric emergencies, geriatric care and care of patients unable to maintain normal body temperature as well as environmental emergencies.

Controlled to a temperature range of 36 to 38 degrees Celsius (99 to 101 degrees F) the PAK2-P iv warmer™ delivers a thermal normal iv solution consistently. This helps to reduce the risk of induced or secondary hypothermia while providing great patient comfort.

• Pelican box is compact measuring 16in x 12in x 7in
• Durable, Accurate & Insulated

• Compatible with the Thomas EMS 4-Liter IV Warmer and the Thomas EMS Heating Pack

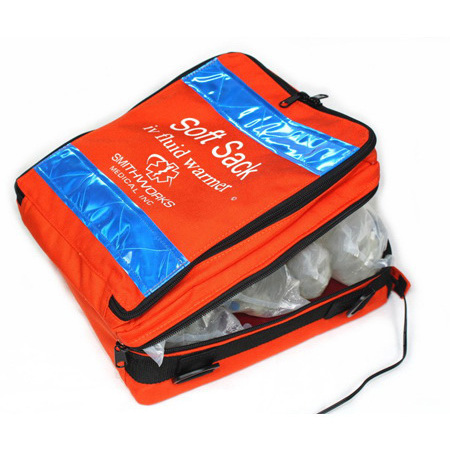

The Soft Sack iv fluid warmer, by carries three (3) liters of warmed fluid and has a storage area designed to carry all tubing, catheters, and materials associated with gaining iv access. Its intended area of use is remote from the emergency vehicle deployed to the scene of an incident.

The Soft Sack iv fluid warmer, by is 40 watt, 12 volt dc and draws 3 amps intermittently. Cool fluid is warmed by conduction. The thermal rate of rise is ½°Farenheit per minute. Once heated to 99°F - 101°F, the unit maintains that temperature until the iv solution is removed from the heating surface, or when power to the device is inadequate, absent, or when the unit is turned off

The standard battery charger (TA-CAC) is designed to charge the standard battery (TA-BCE).

• Charger automatically shuts off when standard battery is fully charged
• Charges from 120V
• Reusable

The standard battery bag (TA-CC) is designed to carry the standard battery (TA-BCE) in a convenient over-the-shoulder format or from an IV stand. The standard battery bag is made of lightweight black nylon, and includes access holes to charge the standard battery, connect the standard battery to the thermal angel (TA-200), and view the charge status of the standard battery.

• Black nylon carrying case for the standard battery
• Carry over the shoulder or hang from IV stand
• Includes access holes for standard charger, power cable (standard or ultra) and LEDs
• Reusable

The standard power cable is a ten foot reusable power cable that is designed to connect the thermal angel (TA-200) to the battery.

• Connects the thermal angel to the standard battery or ultra battery 1
• 10ft (3.05m) to allow maximum flexibility
• Reusable

The thermal angel ultra battery charger allows charging of the thermal angel ultra battery (TA-UB1) from AC.

• The Thermal Angel ultra battery charger (TA-UBC) runs on AC power and charges the ultra battery 1 (TA-UB1)
• Charges the ultra battery 1 with AC power
• Works in the US and most international environments

The thermal angel ultra power cable is a three foot reusable power cable that is designed to connect the thermal angel (TA-200) to the battery.

• The ultra power cable was designed to provide a shorter, lighter power cable for those EMS caregivers with space or weight limitations
• Ultra battery 1 (TA-UB1)
• Standard battery (TA-BCE)
• The ultra power cable has color coded ends to assist in connecting it to the Thermal Angel (TA-200)
• The ultra power cable can be purchased separately, or it is included in the ultra emergency pack (TA-UEP)

The Thermal Sack Pressure Infuser™ (TSPI) is designed as a thermal maintenance device to be used with iv fluid warmers, or coolers built by Smithworks Medical, Inc.

• To be used with iv fluid warmers or coolers
• Designed to maintain “target temperatures”; warm or cold
• Thermal maintenance tool, not a stand alone device

The CoolFreeze CDF-11, which is suitable for deep freezing, represents a new era in the world of compressor coolers – in a size which previously seemed impossible! The CDF-11 is as compact as a thermoelectric BordBar and therefore is an ideal fit in corners, cabinets or strapped into a passenger or rear seat. Its 0.37cuft volume (10.5 l) can be used for refrigeration or deep-freezing, regardless of high ambient temperatures. At only 19.4lbs in weight and with a convenient shoulder strap, it's comfortable to carry. Comes with DC connection cable. Never be without ice cold power!

• Electronic thermostat with digital temperature display and three-stage battery monitor
• Adjustable shoulder strap
• Two integrated drink holders
• LED interior light
• Easy and secure fastening with vehicle safety belt

Features of the pack include three interior color coded pockets with elastics designed to hold medications or other IV supplies, and two removable clear vinyl exterior pockets. The outside of the pack is constructed from 1000D water resistant fabric with protective foam and aluminum insulated polyethylene bubbles for maximum heat radiance and temperature maintenance. The exterior of the pack also includes reflective striping for improved visibility.

• Adjustable back pack straps with chest connect for long distance rescue and treatment (Back pack straps can also be tucked away)
• Holds up to 3 liters of IV fluids as well as all tubing accessories
• Fuse protected and easily removalble aluminum heating element
• Pre-set 98° temperature maintained (+/- 1°) while plugged in
• Fuse protected and easily removalble heating element
• 12 volt operation

TT650

**ITEM IS RESTRICTED FOR EMS CUSTOMERS ONLY**

The Thermal Angel is an in-line, battery-powered disposable, lightweight and completely portable blood and IV fluid infusion warming device, capable of intravenous application and irrigation warming.

Features:

• Disposable; Single Patient Use
• Maintains a constant 38°C ±3°C (100.4°F) at a flow rate of KVO to 150 ml/min given a fluid input temperature of 20°C (68°F) with a fully charged battery (TA-BCE or TA-UB1)
• Smart Disposable - Measures / adjusts output temperature 5000X per second
• A fully charged Standard Battery (TA-BCE) will last approximately 3 to 5 liters of IV fluid at various flow rates with an input temperature of 20°C (68°F) or 1 to 3 units of blood with an input temperature of 10°C (50°F)
• A fully charged Ultra Battery 1 (TA-UB1) will last approximately 1 to 2.5 liters of IV fluid at various flow rates with an input temperature of 20°C (68°F) or 1 to 3 units of blood with an input temperature of 10°C (50°F)
• Cost Effective - Single disposable remains with patient (up to 72 hrs)

Includes:

• (4) Thermal Angel Blood and IV Fluid Warmer
• (4) Thermal Angel 9" IV Extension Set
• (1) Thermal Angel Standard Battery
• (1) Thermal Angel Standard Battery Bag
• (1) Thermal Angel Standard Battery Charger
• (1) Thermal Angel Standard Power Cable, 10
• (1) Thermal Angel Standard Emergency Bag
• (1) Thermal Angel Emergency Pack Instructions

**ITEM IS RESTRICTED FOR EMS CUSTOMERS ONLY**

The Thermal Angel is an in-line, battery-powered disposable, lightweight and completely portable blood and IV fluid infusion warming device, capable of intravenous application and irrigation warming.

Features:

• Disposable; Single Patient Use
• Maintains a constant 38°C ±3°C (100.4°F) at a flow rate of KVO to 150 ml/min given a fluid input temperature of 20°C (68°F) with a fully charged battery (TA-BCE or TA-UB1)
• Smart Disposable - Measures / adjusts output temperature 5000X per second
• A fully charged Standard Battery (TA-BCE) will last approximately 3 to 5 liters of IV fluid at various flow rates with an input temperature of 20°C (68°F) or 1 to 3 units of blood with an input temperature of 10°C (50°F)
• A fully charged Ultra Battery 1 (TA-UB1) will last approximately 1 to 2.5 liters of IV fluid at various flow rates with an input temperature of 20°C (68°F) or 1 to 3 units of blood with an input temperature of 10°C (50°F)
• Cost Effective - Single disposable remains with patient (up to 72 hrs)

Includes:

• (4) Thermal Angel Blood and IV Fluid Warmer
• (4) Thermal Angel 9" IV Extension Set

**ITEM IS RESTRICTED FOR EMS CUSTOMERS ONLY**

The Thermal Angel is an in-line, battery-powered disposable, lightweight and completely portable blood and IV fluid infusion warming device, capable of intravenous application and irrigation warming.

Features:

• Disposable; Single Patient Use
• Maintains a constant 38°C ±3°C (100.4°F) at a flow rate of KVO to 150 ml/min given a fluid input temperature of 20°C (68°F) with a fully charged battery (TA-BCE or TA-UB1)
• Smart Disposable - Measures / adjusts output temperature 5000X per second
• A fully charged Standard Battery (TA-BCE) will last approximately 3 to 5 liters of IV fluid at various flow rates with an input temperature of 20°C (68°F) or 1 to 3 units of blood with an input temperature of 10°C (50°F)
• A fully charged Ultra Battery 1 (TA-UB1) will last approximately 1 to 2.5 liters of IV fluid at various flow rates with an input temperature of 20°C (68°F) or 1 to 3 units of blood with an input temperature of 10°C (50°F)
• Cost Effective - Single disposable remains with patient (up to 72 hrs)

Includes:

(2) Thermal Angel Blood and IV Fluid Warmer
(2) Thermal Angel 9" IV Extension Set
(1) Thermal Angel Ultra Battery 1
(1) Thermal Angel Ultra Battery Charger
(1) Thermal Angel Ultra Vehicle Charger
(1) Thermal Angel Ultra Power Cable, 3'
(1) Thermal Angel Ultra Emergency Bag
(1) Thermal Angel Emergency Pack Instructions
