Suction Units

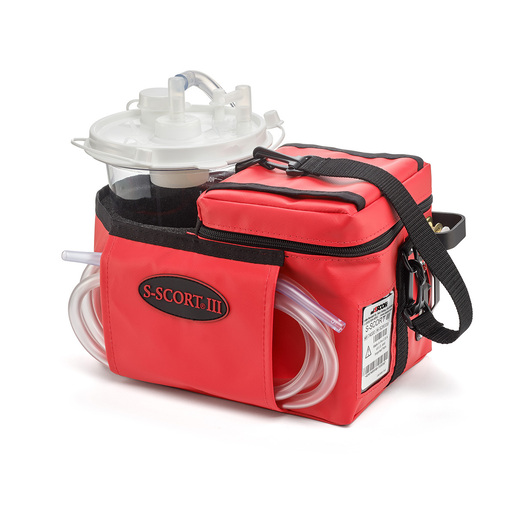

The S-SCORT® III has proven itself to be a durable, reliable, and economical EMS suction device. The S-SCORT III provides all of the power and versatility necessary to quickly and effectively clear an airway, weighs only 7 pounds and is economical to purchase and maintain. The components of the S-SCORT III are encased in protective foam for exceptional protection and durability. The S-SCORT III delivers >30 LPM clinical airflow and vacuum is regulated by a two position regulator, allowing the operator to choose between full power (>525mmHg) and reduced power (120mmHg +/- 15%) for endotracheal and pediatric suction procedures. The device is powered by an internal sealed lead acid battery, which is maintained by an AC/DC charger or a DC power cord.

Specifications:

• Dimensions: 8in H x 7in W x 11in L (20.3cm H x 17.8cm W x 27.9cm L)
• Performance: >30lpm Clinical airflow, >525mmHg vacuum
• Weight: 7 lbs (3.18 Kgs)
• Power source: Internal rechargeable sealed lead acid batteries
• Vinyl coated nylon over foam construction
• Lasts 30 to 45 minutes when fully charged

The SSCOR VX-2 is a lightweight, portable, powerful and "Firefighter" tough, battery powered suction unit. The SSCOR VX-2 with Charging/Retention Bracket is both an onboard AND a portable suction unit. It mounts in the action area of a vehicle and the charging/retention bracket holds the unit securely in place and provides vehicle power to run the VX-2 as an onboard suction device, while charging the internal battery. The device can be removed from the charging /retention bracket with one hand to become a powerful and effective portable suction unit, easily transported to the patient’s side. The SSCOR VX-2 features an advanced battery maintenance system which conveys the condition of the battery to the user as the device is charging or during use and allows the device to be plugged in at all times without over charging the device. The device also features outward facing controls that are easily accessible during operation and a variable regulator and gauge.

Features:

• Battery Condition Indicators show battery level of charge
• Internal Battery Charger charges the internal sealed lead acid battery from AC or DC power source and disconnects a depleted battery to avoid a deep discharge
• Charging/Retention Bracket secures the device to a force of 10G,EN 1789 compliant
• Dimensions 17 in L x 9 in H x 5.25 in W
• Weight 9.2 lbs (device with bracket) 8.6 lbs (device only)
• Ingress Protection IPX4

# 592310BV: 9.2 lbs (device with bracket) 8.6 lbs (device only)
# 592310V: Weight 8.6 lbs (device only)
Note: The one-handed bracket is attached by the manufacturer and can only be added at the time of purchase. PLEASE ALSO NOTE: Item #592310V requires the purchase of a new retention/charging bracket (# 8310). Your existing retention/charging bracket will not be compatible with this model of the S-SCORT VX-2 suction unit.

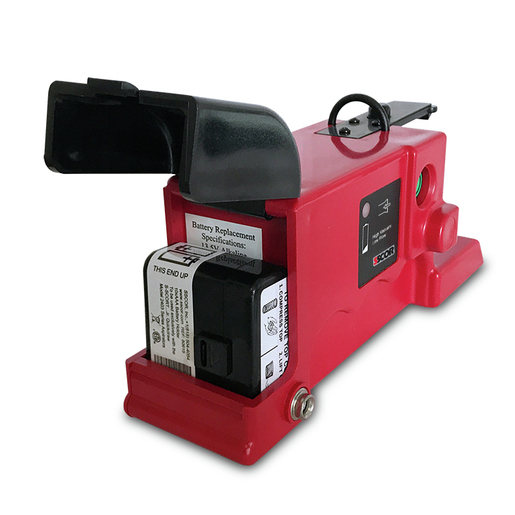

At less than three pounds, the Quickdraw® is compact and light enough to fit in an airway bag, and can be readily transported to the patient’s side. There is no need to manually pump the Quickdraw, making it easier to control the catheter tip and clear the airway. The canister is equipped with a short and wide fluid path, enabling the Quickdraw to evacuate thick, chunky fluids more quickly. Includes DC power cord and canister.

• Size: Canister Stored: 10 1/2 inch L x 4 1/2 inch H x 4 1/4 inch W; Canister In Use: 16 inch L x 4 1/2 inch H x 4 1/4 inch W
• Weight: 2.6 lbs
• Vacuum Pump: 12V DC oil-less diaphragm, 0.8A. Exceeds 500 mmHg negative pressure
• Regulator: Vent port on canister; when open it reduces vacuum to 120 mmHG +/- 15%
• Canister: 300cc capacity, hydrophobic filter, 99.98% bacterial effective

Two battery options are available for the Quickdraw. One utilizes a rechargeable sealed lead and battery. Charge the unit directly from vehicle power, from an AC wall adapter or charge batteries remotely with the desktop charging system. The other utilizes replaceable alkaline battery backs, which offer extended run time to minimize dependence on charging protocols, cables and power sources.

• One-hand-grip design
• Small and Lightweight
• Disposable canister system
• Internal integrated filter systems for all canisters
• Latex free
• Big vacuum regulator dial, with "clicking sound"
• LED display for use day or night
• Battery level indicator
• Children vacuum range area (marked in blue) on the control panel
• Arrows pointing the vacuum direction
• No-tools-necessary field changeable battery
• Battery run time: approximately 45 minutes (free flow)

Performance:

• High flow / High vacuum
• Air flow @ Vacuum inlet: 27 LPM (free flow) typical
• Vacuum - Max: 550 mmHg (73.3 kPA)
• Vacuum - Range: 50 - 550 mmHg (6.7 - 73.3 kPA)

The LSU provides device diagnostics with tests including an occlusion check, vacuum efficiency, maximum vacuum, system leakage and battery status.

Features:

• Disposable
• A "no tools" replaceable battery
• Built-in charger and integrated vacuum regulation/power control in a rugged "bump-proof/splash-proof" design that is very quiet
• Device diagnostics check critical system functions
• Single knob controls vacuum and unit power
• Variable vacuum with five commonly used settings
• Capable of 30 LPM at 500+ mmHg setting
• Full "Rib Cage" design protects canister
• Quiet - less than 57db (A) at 500 mmHg free flow
• Night/day visibility LEDs indicate critical functions

The suction unit comes with: AC and DC cords, disposable canister with patient tubing, battery and directions.

The Suction Easy Kit contains supplies to suction an airway in a field trauma situation. The device is a compact, lightweight alternative to battery-powered suction

Features:

• (1) Suction Easy
• (1) Olive Drab or Coyote Brown Nylon Case with Silk Screen "Suction"
• (1) 14 FR Suction Catheter
• (1) Suction Catheter Adapter

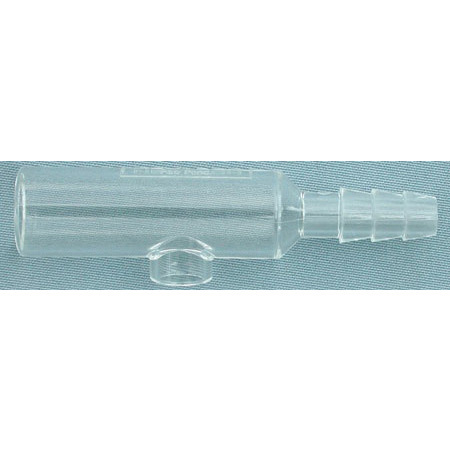

• Designed to eliminate mouth suctioning of meconium
• Suction control port for intermittent suctioning
• Attaches to most endotracheal tubes
• Featured in the textbook of neonatal resuscitation
• Not made with natural rubber latex or plasticizer DEHP
• Individually packaged
• ET tube connection opening: 15mm ID
• Thumb port opening: 10mm ID

Kit Includes:

• (1) Suction Easy Disposable Suction Unit w/ Adapter
• (1) Suction Catheter with straight connector, non-vented, 14 French

The Curaplex® hand-held suction pump is a compact, hand powered, durable, light weight and high volume suction unit. Perfect for emergency suction of adult, pediatric, and neonate patients.

Refill canisters are available (See You May Also Like Section).

Features:

• Easy to operate by one hand
• Stable and shock resistant
• Heat resistant, reusable suction canister made of durable plastic that is shatter and leak proof
• Simple maintenance and easy to replace or clean canister
• Built-in overflow protection mechanism against spilling and clogging
• Adjustable vacuum for child or adult
• Fits most common suction catheters

Each manual suction unit comes complete with​:

• Reusable pump
• An Interchangeable Canister
• (2) Soft catheters
  • (1) Small
  • (1) Large
• Instructions

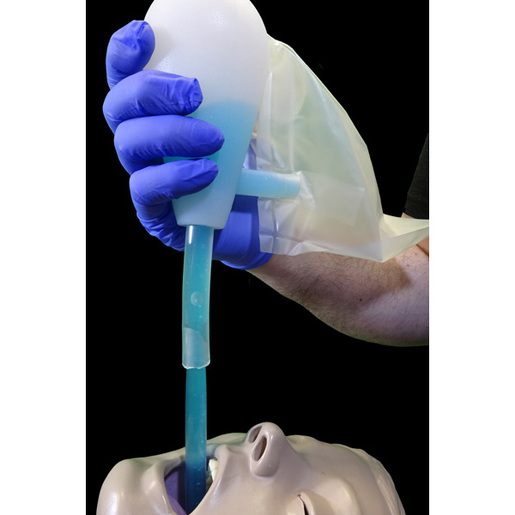

The first and only completely hand held manual suction device with the capability to perform the SALAD technique.

Affordable, effective and simple to use, SEADUC™ provides instant readiness for resuscitation.

The combination of the Suction Easy™ unit and SSCOR DuCanto Catheter® is intended to enable the performance of the SALAD technique with a disposable emergency suction unit, and indeed, represent the only option currently available to perform the SALAD technique without a battery operated suction unit, or the central suction system of a ambulance or hospital. SEADUC effectively removes vomit, blood and other materials, while the practitioner manages the patient’s airway with basic or advanced life support procedures, such as an oral airway, or tracheal intubation.

• Instant Availability – There’s no need to worry about batteries or electricity. Immediately ready for use upon removal from its packaging with assembly to the included SSCOR DuCanto Catheter®.
• Powerful -Suction vacuum and large diameter catheter rapidly and completely open the upper airway. Approximately 100 mmHg + vacuum of suction.
• Fits All Hand Sizes – Ease of grip and compression regardless of hand size or strength.
• Adequate Fluid Capacity – Total fluid capacity is in excess of 1,000 cc.
• Disposable – No parts to inventory, lose or replace and no cleaning.
• Compact Design – Allows inclusion in EMS equipment bags such as airway management packs, pouches, tactical kits, bicycle saddle bags, crash cart drawers, and stand-alone public access defibrillator cases.
• Rugged – Stuff in kits and even drive over with the ambulance and the unit will still perform.
• Lightweight and rounded surfaces – At less than a pound, minimal load is added and it is safe to use in moving vehicles, aircraft and spacecraft.
• Handles a wide temperature range from -40°F to 140°F.

The SEADUC system is a pairing of the Suction Easy™ Disposable Emergency Suction Unit and the SSCOR DuCanto Catheter®, an anatomically shaped large bore suction catheter intended for prehospital, emergency medicine, critical care and anesthesiology use.

The SALAD technique is a method of partnering the ability of a large bore rigid suction catheter (SSCOR DuCanto Catheter®) to simultaneously decontaminate a soiled upper airway while assisting the performance of basic and advanced life support airway maneuvers (BLS and ALS airway maneuvers), such as placement of oropharyngeal airway, supraglottic/extraglottic airway, or laryngoscopy. ‘SALAD’ is an acronym for “Suction- Assisted Laryngoscopy (with simultaneous) Airway Decontamination,” which describes the cooperative use of the rigid plastic suction catheter to assist simultaneous airway decontamination with BLS and ALS airway maneuvers.

Suction Easy™ with the SSCOR DuCanto Catheter® provide the ability for emergency airway care virtually anywhere a patient may require resuscitation.

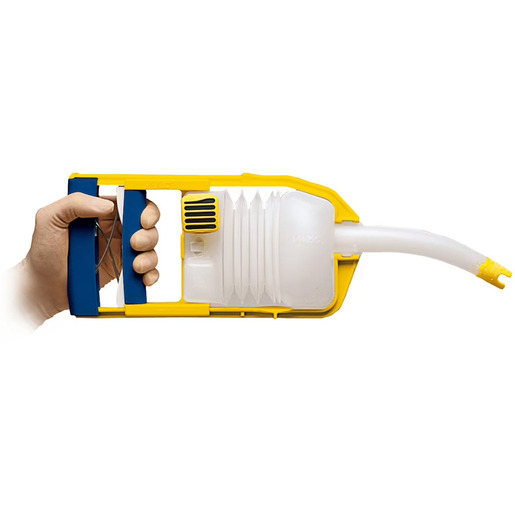

V-Vac™ Starter Kit includes:

• Handle

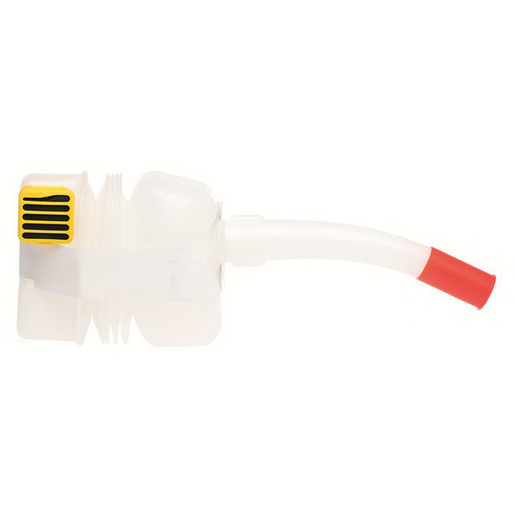

• 2 Replacement Cartridges
• Short Suction Catheter w/Adapter Tip

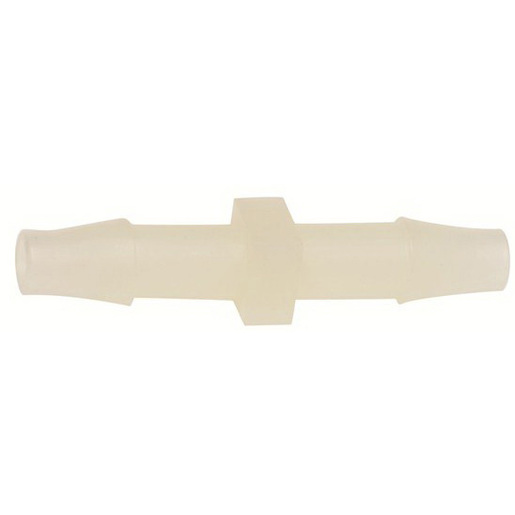

• Double Male Connector
• Directions for Use

Features:

• Develops maximum peak suction pressure in excess of 380mmHg (15in) and peak air flow over 70lpm
• Large bore intake helps the V-Vac™ resist clogging
• V-Vac™ weighs only twelve ounces and takes up a minimum amount of storage space
• Pop out the used cartridge and it acts as a specimen container for analysis or disposal
• One hand application

The Res-Cue Pump™ Kit is a cost effective alternative to electrical and foot powered devices. The Res-Cue Pump is a portable, hand-operated emergency suction pump.

Features:

• Compact and light weight - small and handly unit takes up very little space
• Easy to squeeze - requires extremely little force
• Adjustable vacuum (100%, adult or 50%, children)
• Fast and powerful - offering superior performance
• No regular maintenance - low cost operation
• No special storage conditions - stores easily in most emergency kits
• Overfill protection - prevents contamination inside the pump/handle and eliminates need for flish-through procedures and prevents inconvenient exhaust splashing of liquids
• Disposable collection container - no cleaning/sterilisation required

• Universal water seal technology with air leak monitor for patient air leak trending
• Internal knock-over nozzles to reduce inter-chamber fluid spills
• Highly visible suction indicator
• In-line connector with needleless access sampling port
• Large, easy-to-grab handle and flexi-hangers allow the drain to be hung bedside from a single point
• High negative and positive pressure relief valves for patient protection
• Large, easy-to-read graphics provide fast, accurate drainage assessment
• Removable slide clamp

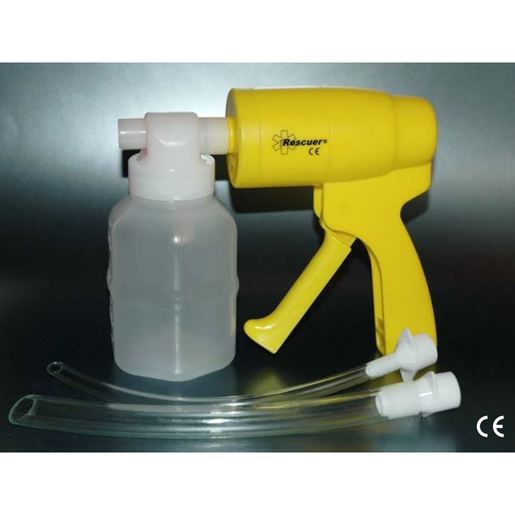

• State of the art, high vacuum, light, portable emergency suction device
• Built-in 3M HEPA Filter for bacterial and viral protection
• Adult and child suction settings
• Built-in overflow protection seal
• 100 degree swivel allows better accessibility in tight situations
• Efficient operation and simple maintenance
• One hand operation
• Large volume capacity
• Disposable collection jar and catheter
• Vacuum (Max):-550mmHg
• Peak free airflow:>20 l/min
• Disposable container volume:350ml
• Operating temperature:-20°C + 50°C
• Storage temperature:-40°C + 60°C
• Bacterial Filtration Efficiency (BFE)99.99%
• Viral Filtration Efficiency (VFE)99.99%
• Dimensions: Assembled 160X70X35mm

• High negative and positive pressure relief valves for patient protection
• Vacuum indicator
• Automatic pre-set suction regulator at -20cm H2O
• Needleless access sampling port
• Simple patient air leak detector window
• 500mL Collection volume
• Multiple chest tube connector options

• 100° swivel allows better accessibility in tight situations and helps to prevent premature overflow
• Built-in overflow protection
• Disposable collection jar and both adult and child catheter
• 300ml Disposable container volume

The S-SCORT II is designed to operate using Lifepak® 5, 10 and 12 defibrillator batteries. The S-SCORT II has two receptacles; one to hold an active battery and one to hold a spare. Once depleted, the batteries can be recharged in the same manner as the batteries going into the defibrillator.

The S-SCORT II features a two position regulator enabling you to switch between a very powerful setting in excess of 525mmHg down to a gentler 120mmHg +/- 15% for tracheal and pediatric procedures.

NOTE: Batteries are not included and the S-SCORT II has no charging capabilities. Batteries are to be supplied by the user and charged in the manner prescribed by the manufacturer of the battery.

Specifications:

• Dimensions: 7in H x 7in W x 14in L (17.8cm H x 17.8cm W x 35.6cm L)
• Weight: 10 lbs (4.55 Kgs) with batteries (not supplied)
• Performance: >30lpm Clinical airflow, >525mmHg
• Vacuum regulator settings: >525mmHg or 120mmHg +/- 15%
• Utilizes defibrillator batteries (designed for LifePak® 5, 10 and 12 defibrillators)
• Carries one active and one spare battery
• Runs for approximately 20 minutes on each defibrillator battery at full capacity
• Two position vacuum regulation
• Steel frame chassis
• Vinyl covered nylon wipe down exterior

• High performance - The DeVilbiss® homecare suction unit 7305 series completes the portable suction line with high performance capabilities in a small compact package. Vacuum adjustments allow for 80 to 550mmHg and a free flow of 27L/min
• Easy-to-read gauge - The unit has conveniently placed gauge for easy reading. This is especially important when precise measurements of vacuum are needed for the pediatric patient
• Adjustable flow regulator - Easy-to-turn knob conveniently placed directly below gauge, for easy use and control. Knob has safety lock feature which will not allow the knob to be twisted off
• Compact Design - All of the high-performance capabilities are conveniently placed in a small compact package weighing less than 6.3lb The compact design with the high-performance capabilities makes the 7305 series suction unit the smallest and strongest portable suction unit of its kind

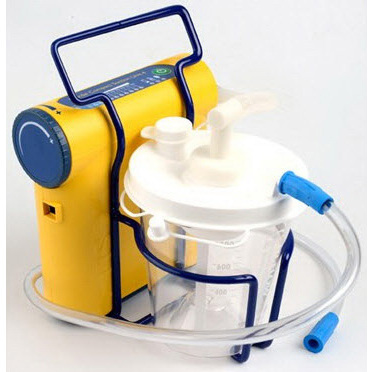

Meets RTCA/DO-160G Section 21 Category M (for battery operation only; commercial aircraft, airborne equipment) standard. All LCSU 4 units with RTCA approval are certified for use in aircraft.

Includes:

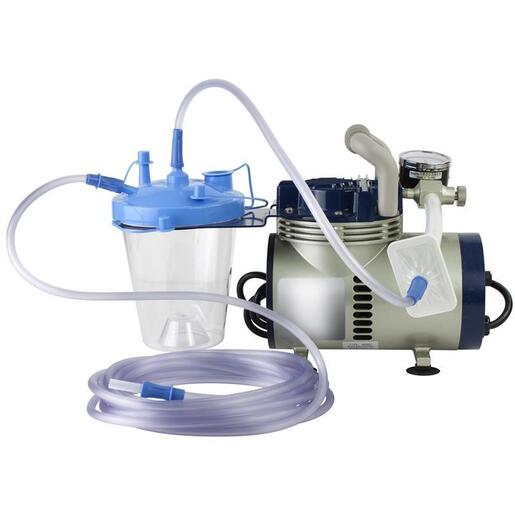

• 800 ml disposable canister
• Patient tube (6 ft)
• AC/DC adapter charger
• AC Power-cord
• Battery
• Directions for use
• Carry Bag
• Wire stand
• Vacuum tube

Features:

• One-hand-grip design
• Small and Lightweight
• Disposable canister system
• Internal integrated filter systems for all canisters
• Latex free
• Big vacuum regulator dial, with "clicking sound"
• LED display for use day or night
• Battery level indicator
• Children vacuum range area (marked in blue) on the control panel
• Arrows pointing the vacuum direction
• No-tools-necessary field changeable battery
• Battery run time: approximately 45 minutes (free flow)

Performance:

• High flow / High vacuum
• Air flow @ Vacuum inlet: 27 LPM (free flow) typical
• Vacuum - Max: 550 mmHg (73.3 kPA)
• Vacuum - Range: 50 - 550 mmHg (6.7 - 73.3 kPA)
