Electrodes

Zoll 6 Lead electrodes.

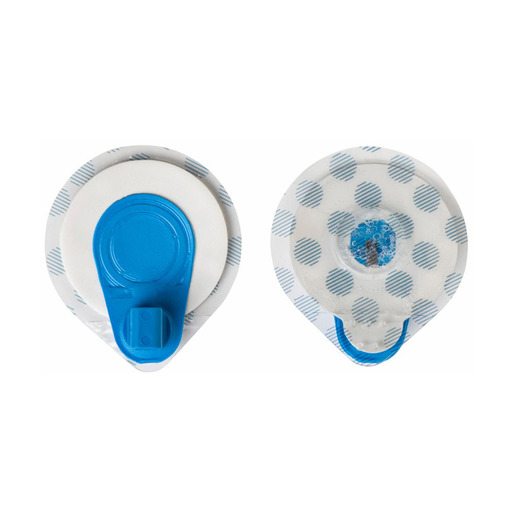

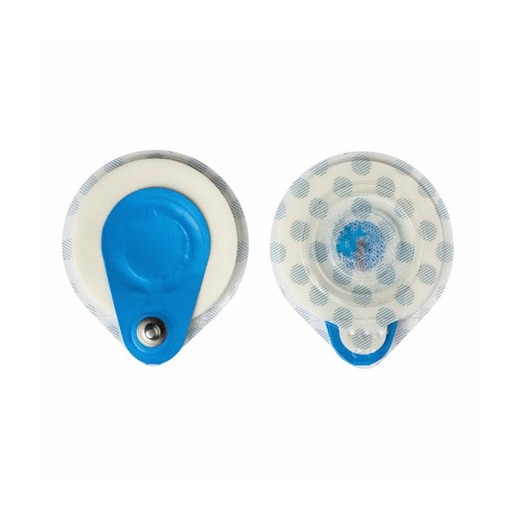

Ambu® BlueSensor offers a time and cost efficient range of electrodes that delivers unmatched readings, user convenience and patient comfort. BlueSensor ensures that you don’t get your workflow disrupted by false alarms or have to waste time resolving problems with electrode adhesion. The electrodes give a fast and reliable trace without the need for skin preparation, maximizing comfort for the patient. Offset connector * Allows movement of the connected cable without affecting the electrode’s performance. * The offset connector prevents artifacts from disturbing the readout. * Easy attachment provides a high level of comfort for the patient and convenience for the user. Double ring adhesive * The two rings secure optimal fixture and precise recordings. * The outer ring is for long-term wear, as adhesion increases with time. The thin and soft material allows the skin to breathe. * The inner ring on the polymer material “seals” the gel area and ensures an immediate, excellent adhesion. * Unique construction allows mounting without skin preparation and comfortable removal of the electrodes. Wet Gel * Wet gel optimizes contact between skin and electrode. * Lowering skin impedance effectively and immediately. * Exact volume of wet gel is key to securing the best possible signal. Ag/AgCl electrode * Pure silver filament – in contrast to carbon/silver combination. * Ensures excellent trace quality due to optimized conversion of the signal from biological to electrical.

* 2-1/4in diameter provides large adhesive area* High chloride wet gel give fast, clear traces* Can be defibrillated* Hypoallergenic and Latex-free* 24 hr Duration of use* 0.42in Sensor (eyelet) diameter, 0.063in substrate thickness (adapter excluded), 3.5204in2 total product surface area, 0.3068 in2 Gel Area, 3.2136in2 adhesive area* Electrical performance: (ANSI/AAMI EC12) 26Ohm ACZ impedance @10Hz, 0.39mV DC offset voltage, 0.06mV/sec SDR slope @30sec int, 21Ohm ACZ impedance repeat, 6µV COIIN, 6mV Bias current tolerance* 18 Months shelf lifeVEA10003-4-60

All Kendall™ Medi-Trace® electrodes have a high quality foam substrate that conforms easily to the skin to ensure electrical contact for consistent tracings. The patented conductive adhesive hydrogel provides additional adhesion, leaves no messy residue to clean up and is designed to stay fresh up to 45 days out of the package. The electrodes also incorporates a lift tab for easy removal. Kendall™ 450 and 850 monitoring electrodes: * Suitable for both short and long term applications, including: * Stress * Holter * General Monitoring * The 850 Series is: * Radiolucent to minimize the need to remove electrodes during X-ray Kendall™ 130 series foam electrodes: * An excellent choice for diagnostic ECG when snap design is preferred * A tear drop shape * The small size is ideal for resting ECG applications Kendall™ 200 Foam series electrodes: * Non-radiolucent * Smaller size are convenient for lead placement Kendall™ 530 series electrodes: * Designed for superior performance including: * Adult stress * Holter and diaphoretic applications * Utilizing a highly aggressive adhesive, the Kendall™ 530 electrode is appropriate for the most challenging of monitoring environments * High quality foam substrate conforms easily to the skin to ensure electrical contact for consistent tracings * The patented conductive adhesive hydrogel provides: * Additional adhesion * Leaves no messy residue to clean up * Designed to stay fresh up to 30 days out of the package

Multi-purpose monitoring electrodes with sticky gel feature a high performance adhesive and foam backing. They are clinically proven to stay in place for up to five days. They are supplied on strips of 3, 5 and 10 electrodes so that they can be quickly and easily applied to the patient. The electrodes remain fresh for 45 days out of the bag and they allow for easy removal from the patient at any time. The conductive gel is sticky to maintain intimate skin contact for excellent trace quality.* Clinically tested for a five-day wear time* 45 Day out-of-bag Performance* Packaged in larger packs for efficiencies* Foam backing is comfortable for patients, occlusive to fluids, and easy to handle for quick application* Sticky gel delivers excellent trace quality resulting in better patient information* Without abrader* Cord delivery - organized application delivery system* 3M Adhesive provides greater adhesion to diaphoretic skin, which results in better trace quality* These electrodes provide a larger adhesive and gel areas to improve product performance* Sticky gel type* Echo-cardio, stress test, telemetry/holter/event monitoring event* Up to five days wear time* 4.06cm x 3.45cm Skin contact size, 10.51sq cm adhesive area, 0.19cm H excluding connector* 3M™ Durapore™ Adhesive Backing Material Adhesive, Radiolucent Snap Connector, Si coated paper, Release Liner, 'Silver/Silver-Chloride Coated Plastic Sensor Material* Lifetime: 5 Days recommended max application time, 2 years sealed pouch* PVC-free3M2560

The Curaplex Foam Electrode features highly conductive wet gel with secure adhesion that ensures excellent signal quality during ECG monitoring. The flexible foam backing material ensures ease of use, as well as comfort to the patient during the application. Features: * Highly conductive wet gel * Secure adhesion * Comfortable foam backing * Electrode Size (LxW): 50mm x 48mm

* Gentle to the skin for increased patient comfort* The gel's low chloride content minimizes skin irritation for increased patient comfort* Micropore tape backing is breathable, flexible and conformable, yet is gentle to the skin for increased patient comfort micropore tape backing is breathable, flexible and conformable, yet is gentle to the skin for increased patient comfort* Guaranteed product freshness for 30 days out of the bagGuaranteed product freshness for 30 days out of the bag* Universally applicable* Pediatric monitoring* Fragile, normal skin type* Up to three days wear time3M2248

* Size: Pediatric/Neonatal * Conductive adhesive gel does not dry out and allows for extended wear without irritating the baby’s skin. * Transparent tape allows visual monitoring of the skin under the electrode. * Latex free to protect against possible latex sensitivity issues. * Cleartrode® electrodes are re-wettable for cost effective long term use and ease of application and removal * Available with durable metal snap or carbon-based radiotranslucent (RTL) snap

* Compatibility: AED Pro, E Series, Propaq, R Series, X Series, X Series Advanced * 5 ECG Electrodes/Pouch (500 Electrodes)

Zoll 4 Lead electrodes.

The edge system electrodes are disposable, combination therapy electrodes that perform ECG monitoring and simplify therapy delivery for pacing, defibrillation and synchronized cardioversion. Redi-Pak preconnect system allows electrode connection prior to use without breaking the package seal. Saves valuable time at patient arrival. Eliminates time-consuming electrode changes and promotes continuity of patient care.11996-000017

The Ambu WhiteSensor WS features a highly conductive solid gel with strong adhesion to ensure a good signal quality during short-term ECG monitoring applications. Thanks to the flexible foam backing material, the electrode ensures ease of use and comfort during application. WhiteSensor Electrodes features: * Disposable, hypoallergenic white foam * Center snap, solid gel * A non-sensitizing, acrylic copolymer coated foam * Foam coating has been increased and this extra coating per square mm of adhesive maximizes adhesion under diaphoretic and stress conditions * Soft conformable electrode * Teardrop shaped, centered snap with conductive solid gel column * Strong medical grade adhesive * Maximum adhesion under diaphoretic and stress conditions * Designed for difficult adhesion conditions that occur in extended patient monitoring or when excessive moisture may be a problem Dimensions: 1-1/2 Inch H x 1.7 Inch W Packs of 3, 4, 5,10, 30 and 50 available

These re-prepositional electrodes can be re-positioned once upon initial application. The electrodes are designed for two Levels of adhesion. The 2670 electrode uses an adhesive that is more aggressive than the 2660 adhesive. Therefore, 2670 should be used if the Level of adhesion of the 2660 is too low for a particular patient or clinical application.

* For ECG/EKG monitoring or diagnosis with the connected equipment as medical sensors* Ag/AgCl coating on electrode surface for effective signal transmission* 50mm x 55mm Foam dimensions* ECG snap electrodes are for adult use only

3M™ Red Dot™ Monitoring Electrodes are multi-purpose monitoring electrodes with foam backing and sticky gel and can be used for all cardiac monitoring applications Features * Adhesive foam-tape backing and proprietary sticky gel ensure excellent skin contact * Sticky gel delivers trace quality resulting in better patient information * Includes small microreplicated 3M™ Red Dot™ Trace Prep surface to improve trace quality * High Performance adhesive provides for long, secure wear * Proven to be effective in many diaphoretic situations

* EMS ten pack for 12 lead ECG* Silver/silver chloride* Diaphoretic aggressive foam snap with 10% chloride wet gel for fast, clear traces* 12-lead EMS kit for ECG* Each electrode designed for a specific location* Defib recoverable* Hypoallergenic and Latex-freeVEA10052-10S

Disposable hypoallergenic 12-lead ECG foam sensors featuring 10% chloride- Ag/Agci. These electrodes feature a lift tab and are completely Latex-free.* Ag/AgCl, high chloride, wet gel electrodes hydrate the skin and produce fast, clear tracings* Aggressive adhesive keeps electrodes on the patient, no motion artifact or repeat testing* Solid gel is designed to produce clear tracings with easy cleanup* Hypoallergenic adhesive* Latex-free* Disposable* Stress test kit

Adult radiotranslucent foam electrode, 2in (50mm) diameter non-invasive patient monitor supplies and accessories.* Wet gel electrode* Suitable for x-ray environment radio-translucent* Disposable radiolucent foam electrode* For use where X-rays will be used* Silver/silver-chloride (Ag/AgCl) sensor* Non-metallic snap, pre-gelled* All adult ECG monitoring and MR systems* Single-patient use* 45 to 25°C ECG electrode temperature range for storage* Ideal for defi brilator/monitors and emergency response* Sealed carbon plastic snaps* MR safe and compatible with Philips 1.0T, 1.5T and 3.0T MR system* Each sealed foil pouch provides a moisture barrier to prevent dry-o

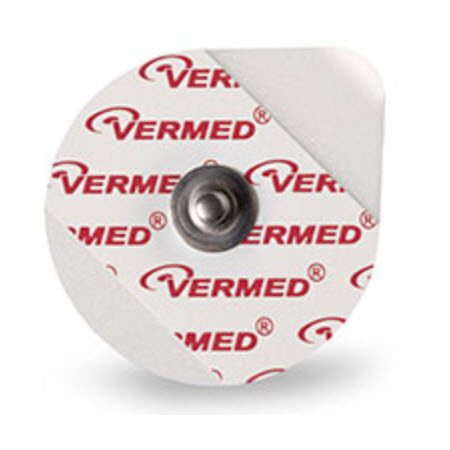

* 1-1/2 in diameter provides large adhesive area* Ag/AgCl, high chloride, wet gel electrodes hydrate the skin and produce fast, clear tracings* Aggressive adhesive keeps electrodes on the patient, no motion artifact or repeat testing* Solid gel is designed to produce clear tracings with easy cleanup* Hypoallergenic adhesive* 24 hr Duration of use* 0.42in Sensor (eyelet) diameter, 0.063in substrate thickness (adapter excluded), 1.7972 in2 total product surface area, 0.3068 in2 Gel Area, 1.4904 in2 adhesive area* Electrical performance: (ANSI/AAMI EC12) 32Ohm ACZ impedance @10Hz, 0.38mV DC Offset Voltage, 0.07mV/sec SDR slope @30sec int, 25Ohm ACZ impedance repeat, 7µV COIIN, 7mV Bias current tolerance* 18 Months shelf lifeVEA10005-4NB

* Size: Adult * Dimensions: 1 3/4in x 1 7/8in * For use in general adult monitoring applications * The foam substrate repels fluids and conforms to body contours * This electrode series has a skin abrader conveniently located on the backside of the liner and the bulk packages of 50 include a ziplock feature to keep product from falling out during storage * The patented conductive adhesive hydrogel is designed to stay fresh up to 45 days out of the package. KE50007305

Our one-piece CPR-D-padz®, which contains a pair of electrodes, senses and reports the motion of the chest compressions to the AED Plus®. With a five-year shelf life, the CPR-D-padz electrode has the longest shelf life of any disposable electrode.8900-0800-01

The Huggables® Snap Style ECG Electrodes with Wet Gel Technology feature: * Clear, perforated tape material that provides continuous observation of the patient’s skin during monitoring, while allowing moisture to evaporate for increased comfort * Light coat weight of acrylic adhesive on the basepad reduces possibility of skin irritation * Utilize a low chloride, wet gel formulation providing quick signal retention, strong signal quality and stable baseline waveforms * Motion artifact is minimized due to the small, conformable design that “hugs” the body * Go on and come off patients with ease, while maintaining a secure, but gentle hold to the skin CN1620-003

The Medsource Foam Electrodes use a conductive adhesive hydrogel "wet gel" which allows for maximum adhesion and electrical contact.The electrodes are made of a foam that is fluid impervious and tear resistant. The special tab helps for easy removal and application.

* 2-1/4in diameter provides large adhesive area* High chloride wet gel give fast, clear traces* Can be defibrillated* Hypoallergenic and Latex-free* 24 hr Duration of use* 0.42in Sensor (eyelet) diameter, 0.063in substrate thickness (adapter excluded), 3.5204in2 total product surface area, 0.3068 in2 Gel Area, 3.2136in2 adhesive area* Electrical performance: (ANSI/AAMI EC12) 26Ohm ACZ impedance @10Hz, 0.39mV DC offset voltage, 0.06mV/sec SDR slope @30sec int, 21Ohm ACZ impedance repeat, 6µV COIIN, 6mV Bias current tolerance* 18 Months shelf life
