Regulator Accessories

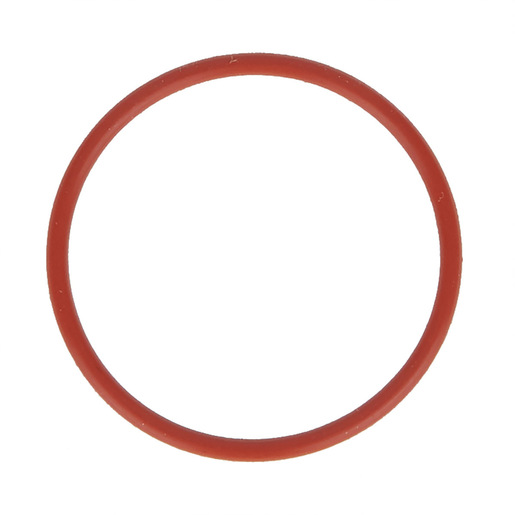

• O-Ring Diaphragm Seal for oxygen regulators

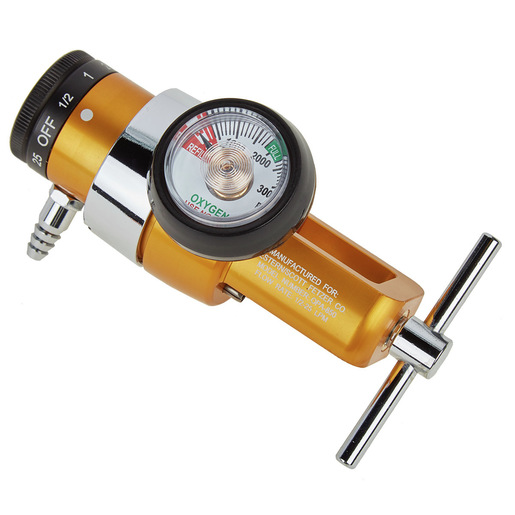

• 1st and 2nd stage

• Compact aluminum body
• Click-style flow control
• Maximum inlet pressure 3000psi
• Sintered filter for additional safety
• Internal reseating relief valve protects against over-pressurization
• 1-1/2in diameter gauge
• Tapered hose barb outlet
• 1/2, 1, 2, 3, 4, 6, 8, 10, 15, 25LPM delivery

• Disposable

Irritant Smoke Tube Kit, for Qualitative fit testing (10/PK)

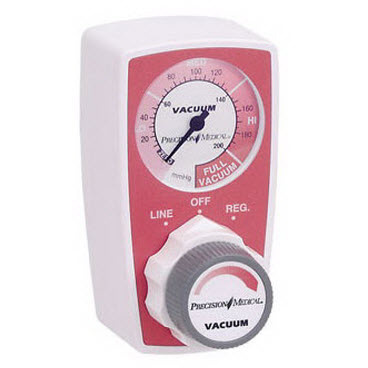

The continuous suction regulator is designed to deliver constant vacuum for general suction procedures, including routine maintenance of the patient airway, oropharyngeal and endotracheal suctioning.

Key features:

• Internal safety relief valve limits the maximum vacuum level to 320 mm Hg in the event of regulator failure or inaccuracy
• Superior regulation mechanism ensures stable vacuum setting seven with fluctuations in source vacuum

Specifications:

• Operating modes: LINE, OFF, REG
• Regulated vacuum range: 0-200mmHg
• Dimensions: 6.8"H x 2.65"W x 4.07"D
• Weight: 1.3lbs

• Replacement barb for LSP/Allied Healthcare brass regulators.

• This unibody regulator features 0 to 25LPM constant flow controller only.
• Each LSP brass regulator has an internal safety relief valve that opens if the outlet pressure exceeds the lockup (zero flow) pressure by 25PSIG.

The continuous/intermittent suction regulator is designed to support a variety of procedures requiring constant or intermittent suction. Constant suction is used primarily to maintain a patient’s airway, while intermittent suction is used for drainage procedures.

• Dual safety relief valves limit the maximum vacuum level on both constant and intermittent modes in the event of regulator failure or inaccuracy
• Superior regulation mechanism ensures stable vacuum settings even with fluctuations in source vacuum
• ISO configurations available

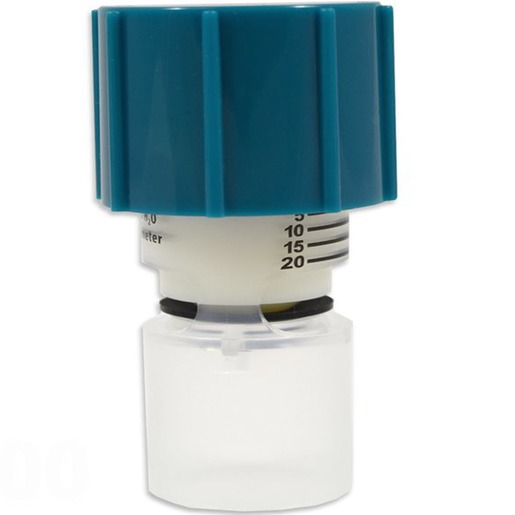

• Designed for use with manual resuscitator/ventilator
• Connects to exhalation port of manual resuscitator
• Large print on scale for easy viewing
• Latex Free
• Single Use
• Pressure range: 5-20 cm H2O
• Size Range: 19mm and 30mm
