Video Laryngoscopes

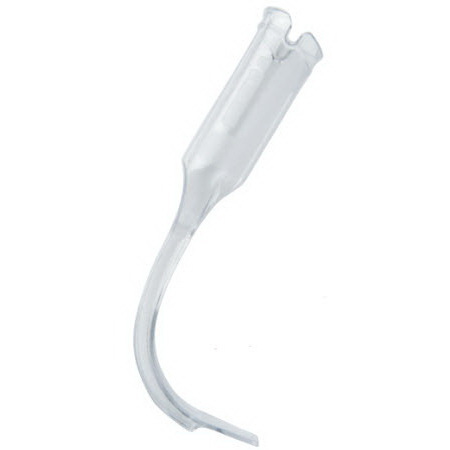

The King Vision® channeled video laryngoscope blade is individually packaged providing new CMOS optics, LED light and anti-fog lens in every blade.

Features:

• Anti fog coating on distal lens
• AP Blade Height: 18mm (channeled)
• Blade length: 17cm
• Blade Width: 29mm (channeled)/ 16mm (distal tip)
• Camera Chip: CMOS
• Camera Resolution: 640 x 480 VGA
• Light Source: White LED
• Disposable material: polycarbonate/TPE
• ET size: 6.00mm - 8.0mm (channeled blade)

AUKVL03C

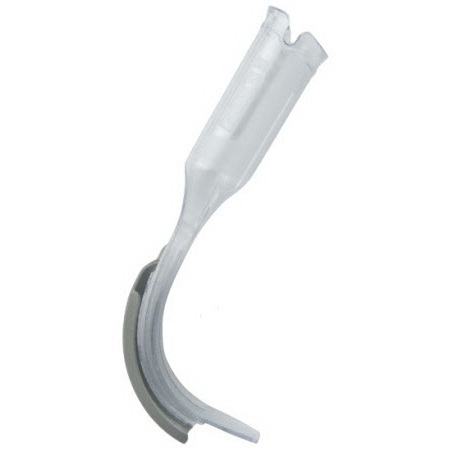

The King Vision® standard video laryngoscope blade  is individually packaged providing new CMOS optics, LED light and anti-fog lens in every blade.

Features:

• Disposable
• Anti fog coating on distal lens
• AP Blade Height: 13mm (standard)
• Blade Length: 17cm
• Blade Width: 26mm (standard)/ 16mm (distal tip)
• Camera Chip: CMOS
• Camera Resolution: 640 x 480 VGA
• Light Source: White LED
• Disposable material: polycarbonate/TPE

AUKVL03

The King Vision® aBlade video laryngoscope offers advanced imaging technology and unparalledled ergonomic design. In addition, it features the unique flexibility from the choice of two blade types:

• Standard
• Channeled

So you can choose what is right for you and your patient.

Single use blades for the UEScope® 2 VL460 Video Laryngoscope.

The King Vision® combines the convenience of a durable, reusable video display with an affordable disposable blade. It provides a high quality image of the vocal cords while minimizing soft tissue manipulation.

Kit includes:

• 1 Vision display
• Case
• AAA batteries
• 3 channeled blades
• 1 standard blade

Reusable Display Features:

• Batteries: 3 AAA (Alkaline recommended)
• Battery Life: > 90 min. (Battery status indicator flashes red when batteries need to be changed.)
• Computerized Power Management System: auto shut off, auto white balancing
• Video Aspect Ratio: 4:3
• Video Port: RCA connection to monitor with cable
• Video Refresh Rate: 30 frames per second
• Video Resolution: 320 x 240 (QVGA)
• Video Screen: OLED Display
• Video Screen Size: 6.1cm / 2.4 inch diagonal
• Material: Polycarbonate /ABS anti-reflective coating on display window

Increase first pass and overall intubation success rates with the UEScope Video Laryngoscope. This is a perfect device for both standard and difficult airways. The portable VL400E UEScope features:

• Monitor allows for movements in all directions, extremely beneficial for confined space rescue.
• Fast swapping of various sizes of handle, even under dim light.
• Anti-fogging disposable sheath eliminates waiting for the blade to warm up.
• Automatic video recording capability with 8G internal memory space.
• The blade/sheath angle provides a more effective view with no blind zones.

The VL400E Video Laryngoscope Kit for EMS includes color display, choice of adult and pediatric disposable blades/sheaths, record/no record options, rigid stylette, USB charger and carrying case.

No Cleaning, Maintenance or Battery Required

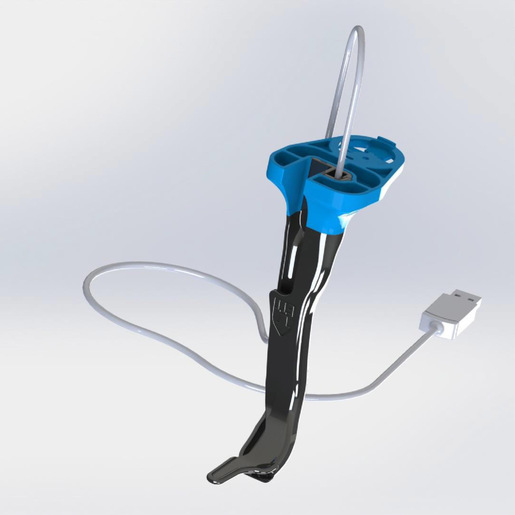

VividTrac provides an unmatched image quality to support proper and speedy placement of the ET tube, leading to high intubation success rate in the first attempt. VividTrac has an integrated ET tube channel providing easy means for the preloaded ET tube advancement into the oral cavity and trachea, under continuous visualization, and without the need of a separate Stylet.

VividTrac has been shown to perform flawlessly under concurrent chest compression, in moving vehicles, as well as with successful suctioning of the airway by the same person performing the intubation. All these attributes and the unique “no force” technique used with the VividTrac (which is well tolerated even in awake patients) make the VividTrac one of the safest devices on the market today.

VividTrac’s USB based “open system” architecture allows it to be compatible with a wide variety of display options (low cost tablets), eliminating the need to purchase or maintain high-cost proprietary equipment. A generic video camera software application, or Vivid Medical’s VividVision® software can be used on variety of operating systems to display video, take snapshots or record the procedure using the VividTrac. Learn more »

VividTrac video is readily recordable and can be easily transferred to patient medical records, or used in education and training.

Features:

• Stainless Steel Blade (will not break)
• Integrated ET Tube Channel for Guiding
• ETT Sizes 6.0mm to 8.5mm (Adult)
• ETT Sizes 4.0mm to 6.0mm (Pediatric)
• Integrated standard USB cord (3ft)

Benefits:

• Superior Imaging
• Portable and Low Cost
• No Cleaning or Maintenance
• No Stylet Required
• No Neck Hyperextension
• No Battery
• Built in Anti-Fogging

Device Requirements:

• USB OTG (On-The-Go) support is required.
• Android 4.4.2 or greater

Unless you have a full size USB port on your device, you will require a USB OTG Adapter cable to connect the VividTrac. Without OTG support your device will not be able to download the app from Google Play. USB OTG cables are available from our on-line store, or generally available at most electronics stores.

Download VividVision for Windows Desktop

Intubation Stylets:

• For use with UE Scope
• Available Sizes:
  • Pediatric
  • Adult

Video Adapter for King Vision® video laryngoscope.

The King Vision® combines the convenience of a durable reusable, video display with an affordable disposable blade. It provides a high quality image of the vocal cords while minimizing soft tissue manipulation.

Reusable Display Features:

• Batteries: 3 AAA (Alkaline recommended)
• Battery Life: > 90 min. (Battery status indicator flashes red when batteries need to be changed.)
• Computerized Power Management System: auto shut off, auto white balancing
• Video Aspect Ration: 4:3
• Video Port: RCA connection to monitor with cable
• Video Refresh Rate: 30 frames per second
• Video Resolution: 320 x 240 (QVGA)
• Video Screen: OLED Display
• Video Screen Size: 6.1cm / 2.4 inch diagonal
• Material: Polycarbonate /ABS anti-reflective coating on display window

• 3in touch screen
• Single use blades
• Auto-recording
• All angle view
• Ready in seconds
• Wifi ready
• Image freeze and flip

Kit Includes:

• Monitor
• USB-C Charger
• Cable Set
• Case

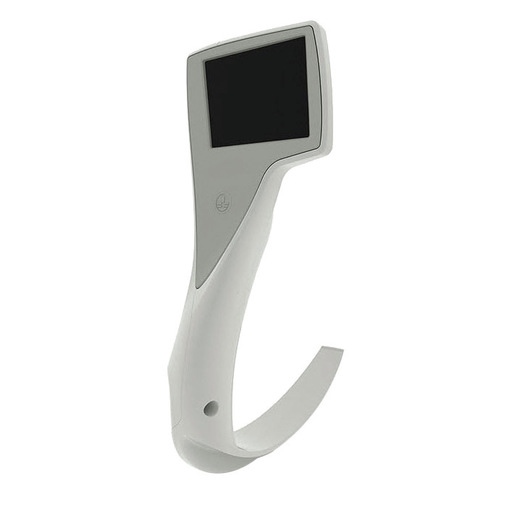

i-view is the new, single use, fully disposable video laryngoscope providing the option of video laryngoscopy wherever you might need to intubate. *Disposal should be in accordance with normal procedures for clinical waste, including landfill or incineration. Local protocols or regulations should be followed when disposing of i-view.

By combining all the advantages of a fully integrated video laryngoscope in a single use, disposable product, i-view provides a cost effective solution.

By incorporating a Macintosh blade, i-view can also be used for direct laryngoscopy. i-view is ready to use seconds after removing from the packaging. The ergonomic design ensures i-view is easy and instinctive to use, and the integral LCD screen provides a view in a variety of light conditions.

Key advantages of video laryngoscopy include:
• Better view of the larynx
• Reduced head and neck manipulation
• Less force required
• Reduced attempts at laryngoscopy
• Higher success rate than direct laryngoscopy when direct laryngoscopy fails

• The King Vision display is light weight, self-contained, battery operated and water resistant. The robust, full-color, smudge proof, non-glare display can resist repeated cleaning and normal use wear and tear. Display comes with 1 year warranty.
• The reusable display and video adapter come packaged in a protective case
• aBlades are individually packaged making King Vision very portable. The disposable blades allow for economical use of the King Vision® for most intubations

• Reusable digital display
• 4 channeled & 2 standard aBlades
• An adult aBlade adapter

• Sheath #2
• Single use
• use with video baton UE Scope only
• Size: Mac 2
• Disposable

VividTrac provides an unmatched image quality to support proper and speedy placement of the ET tube, leading to high intubation success rate in the first attempt. VividTrac has an integrated ET tube channel providing easy means for the preloaded ET tube advancement into the oral cavity and trachea, under continuous visualization, and without the need of a separate Stylet.

VividTrac has been shown to perform flawlessly under concurrent chest compression, in moving vehicles, as well as with successful suctioning of the airway by the same person performing the intubation. All these attributes and the unique “no force” technique used with the VividTrac (which is well tolerated even in awake patients) make the VividTrac one of the safest devices on the market today.

VividTrac’s USB based “open system” architecture allows it to be compatible with a wide variety of display options (low cost tablets), eliminating the need to purchase or maintain high-cost proprietary equipment.

VividTrac video is readily recordable and can be easily transferred to patient medical records, or used in education and training. Please review our library of educational Patient Use Videos, attesting to the versatility of the VividTrac in real world situations, and how easily the Instruction For Use (IFU) of the VividTrac can be learned by new users.

Features:

• Anatomically shaped soft blade
• Small form factor that includes the ETT guide channel
• ETT Size 4.0mm ±1.0mm (Pediatric)
• Integrated standard USB cord (3ft)

Benefits:

• Superior Imaging
• Portable and Low Cost
• No Cleaning or Maintenance
• No Stylet Required
• No Neck Hyperextension
• No Battery
• Built in Anti-Fogging

There is the option to purchase the King Vision® Blade system, meaning customers can connect the disposable Blades via an adapter. This potentially gives the customer an overall lower cost per intubation depending on the number of intubations done.

Features:

• Advanced imaging technology and unparalleled ergonomic design. Visionary performance in the palm of your hand
• Unique flexibility from the choice of two blade types - standard and channeled - depending on the user technique and complexity of the airway
• King Vision® is designed to visualise the vocal cords indirectly which can help minimise the need for tissue manipulation and improve the ability to see anterior airways

The McGRATH™ MAC video laryngoscope is proven to improve first time success rate, reduce time, and lessen hemodynamic response to intubation when compared to the traditional direct visualization technique. Optimizes first-attempt success when compared to direct laryngoscopy, while helping minimize exposure to support your safety, too.

The next-generation McGRATH™ MAC video laryngoscope is an enhanced, more robust device, designed to be used routinely in fast-paced hospital and EMS environments. The latest design offers:

• Enhanced optics
• Increased durability
• Intelligent battery management

Reusable Video Wand features:

• Configuration: Video Wand for Disposable Sheaths
• Blade Type: Pediatric
• For use with 2145-20200

• Lightweight
• Portable, Simple to carry
• Cordless
• No mounting pole and dangling cables to dance with
• Worry-free long-lasting rechargeable battery
• Easy to learn, easy to use
• Built-in Ready for Difficult Airway
  • Our signature angulated blades always be ready for unexpected difficult airway. Low-profile footprint leaves more room for a straight-forward intubation.
• Size: Mac 2
• Component: VL400-D2 Video Baton
• Cleaning: Use with disposable sheath #010-0102 only
• Disposable
  • Minimizes the risk of cross contamination during intubation, improves turnaround time

• Lightweight
• Portable, Simple to carry
• Cordless
• No mounting pole and dangling cables to dance with
• Worry-free long-lasting rechargeable battery
• Easy to learn, easy to use
• Built-in Ready for Difficult Airway
  • Our signature angulated blades always be ready for unexpected difficult airway. Low-profile footprint leaves more room for a straight-forward intubation.
• Size: Mac 3
• Component: VL400-D3 Video Baton
• Cleaning: Use with disposable sheath #010-0103 only
• Disposable
  • Minimizes the risk of cross contamination during intubation, improves turnaround time

• Lightweight
• Portable, Simple to carry
• Cordless
• No mounting pole and dangling cables to dance with
• Worry-free long-lasting rechargeable battery
• Easy to learn, easy to use
• Built-in Ready for Difficult Airway
  • Our signature angulated blades always be ready for unexpected difficult airway. Low-profile footprint leaves more room for a straight-forward intubation.
• Size: Mac 4
• Component: VL400-D4 Video Baton
• Cleaning: Use with disposable sheath #010-0104 only
• Disposable
  • Minimizes the risk of cross contamination during intubation, improves turnaround time

• VL430E monitor 3-inch
• USB-C charger & cable set
• VL400 case

VL460 USB-C Charger and Cable
