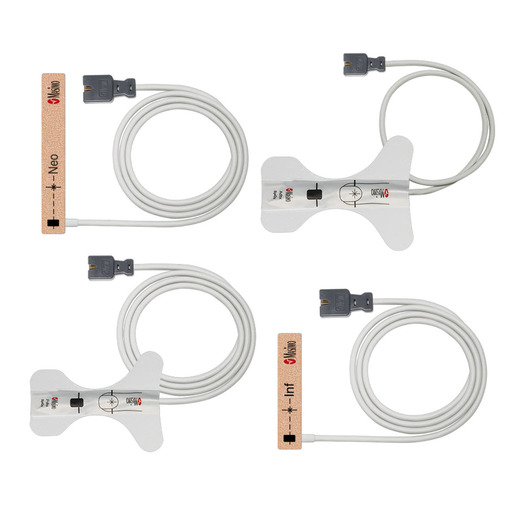

Masimo® LNCS Disposable Sensors

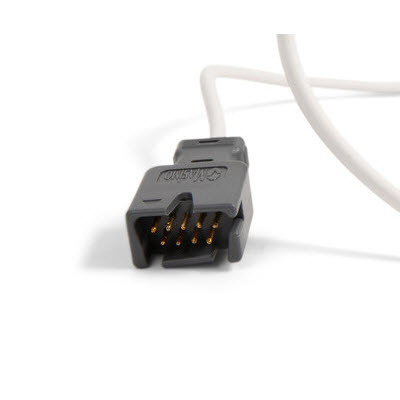

LNCS, or Low Noise Cabled Sensors, are available in a wide variety of designs to serve the needs of many types of patients. LNCS sensors are intended for hospitals that prefer to minimize clinician-user-interface change when upgrading their pulse oximetry to Masimo SET® and do not anticipate adopting rainbow® technology. LNCS sensors are cabled with a DB9 connector, compatible with LNC patient cables, which enables use with Masimo SET® pulse oximeters and Nellcor sensor-compatible instruments without OxiMax®.
Additional patient cables are available to connect LNCS sensors to a variety of pulse oximeters and multi-parameter monitors equipped with Masimo SET®. Adapter cables are also available for monitors with conventional Nellcor technology, allowing standardization on sensors throughout a facility with a mixed inventory of pulse oximeters.
LNCS sensors provide excellent SpO2 performance while facilitating patient comfort with a connector positioned away from the sensor application site. Specialty LNCS sensors with built-in intelligence are available for patients with limited or no access to digits or patients with extremely low perfusion.
- Appropriate for short- or long-term monitoring of adult, pediatric, infant, and neonatal patients
- Designed for finger, toe, thumb, hand, or foot application, offering secure positioning of the optical components
- SofTouch™ sensors are designed for patients with fragile skin and feature a non-adhesive wrap made from soft foam material, with hook-and-loop attachment
- Minimize the risk of cross-contamination
- Available in neonatal to adult sizes
Are you sure you want to clear this supply list?
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
|
---|---|---|---|---|---|---|---|---|---|---|---|---|---|

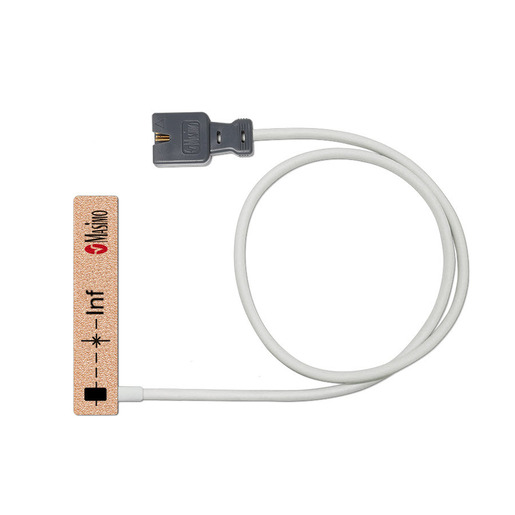

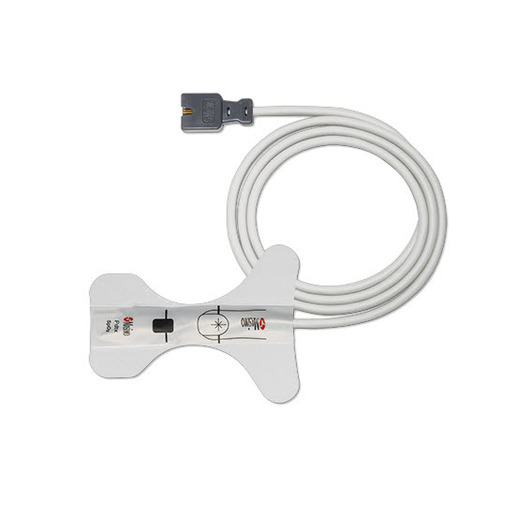

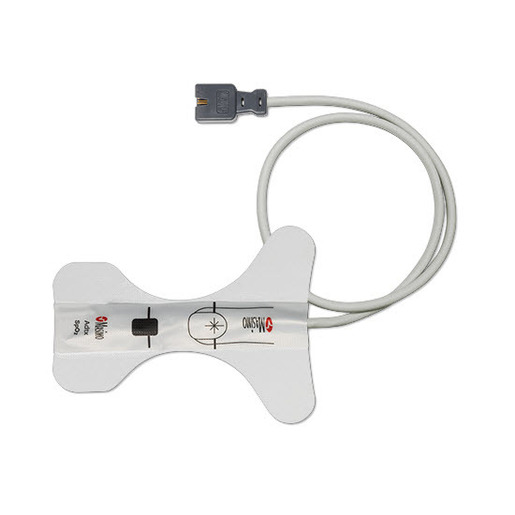

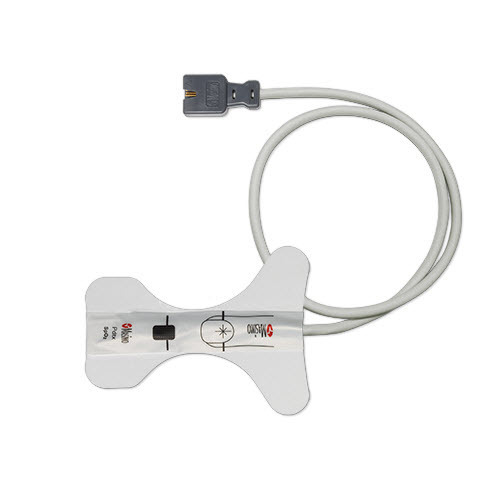

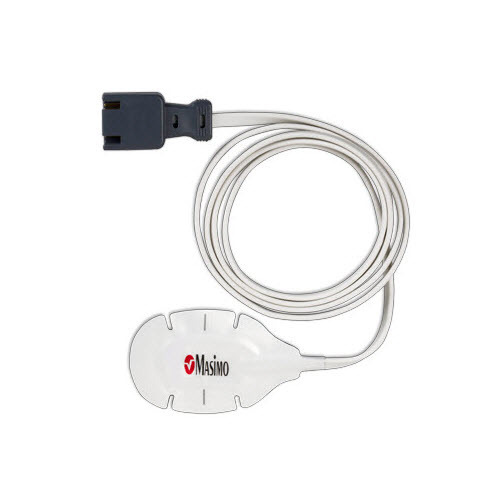

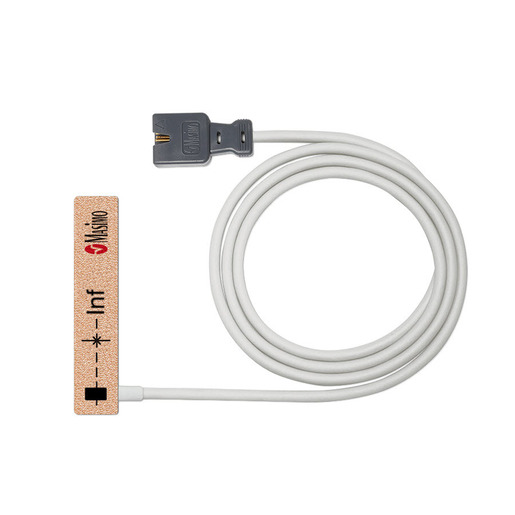

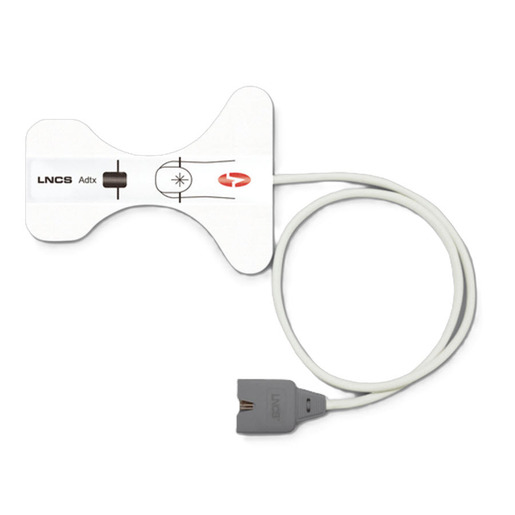

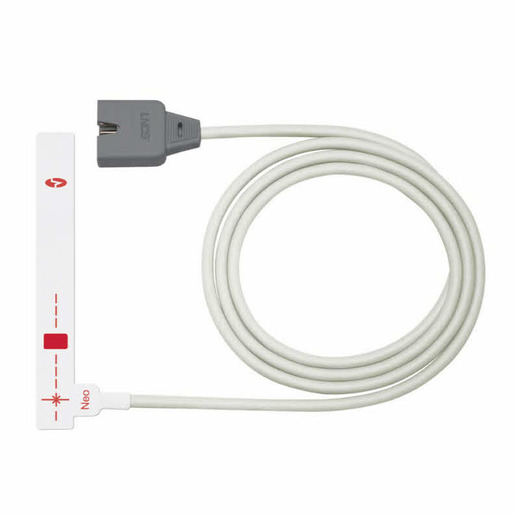

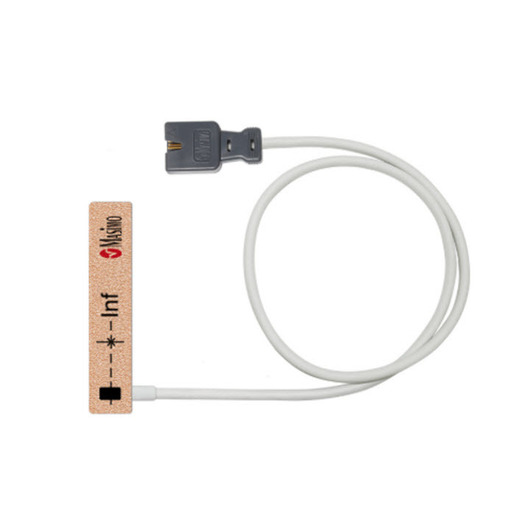

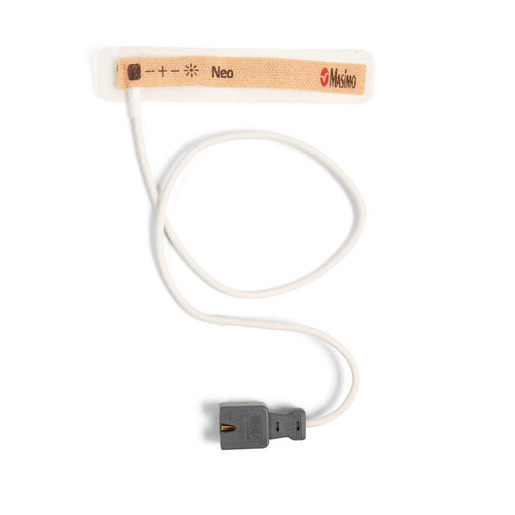

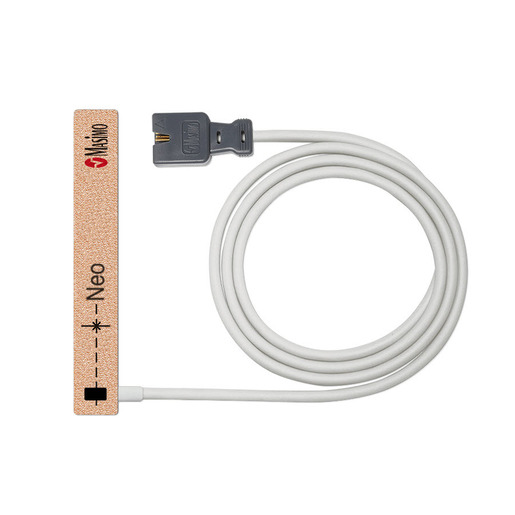

Product # | 2712-02811 | 2712-02971 | 2712-28000 | 2712-23200 | 2712-23190 | 2712-03111 | 2345-02328 | 2712-02020 | 2712-32126 | 2712-03858 | 2712-04126 | 2712-02318 | 2712-18610 |
Patient Size | Newborn (<3kg), Adult (>40kg) | Newborn (<3kg), Adult (>40kg) | Newborn (<3kg), Adult (>30kg) | Newborn (<3kg), Adult (>40kg) | Infant (3 to 20kg) | Infant (3 to 20kg) | Infant (3 to 20kg) | Child (10 to 50kg) | Child (10 to 50kg) | Child, Adult (>10kg) | Adult (>30kg) | Child (10 to 50kg) | Infant (3 to 20kg) |
Length | 18in | 18in | 3ft | 3ft | 3ft | 18in | 18in | 18in | 18in | 3ft | 18in | 3ft | 3ft |
Type | LNCS Sensor | LNCS Sensor | LNCS Sensor | LNCS Sensor | LNCS Sensor | LNCS Sensor | LNCS Sensor | LNCS Sensor | LNCS Sensor | LNCS Sensor | LNCS Sensor | LNCS Sensor | LNCS Sensor |
Sensor Type | Adhesive, Wrap-around | Adhesive, Wrap-around | Adhesive, Wrap-around | Adhesive, Wrap-around | Adhesive, Foldover | Adhesive, Wrap-around | Adhesive, Wrap-around | Adhesive, Foldover | Adhesive, Foldover | Adhesive | Adhesive, Foldover | Adhesive, Foldover | Adhesive, Wrap-around |
Disposable | Disposable | Disposable | Disposable | Disposable | Disposable | Disposable | Disposable | Disposable | Disposable | Disposable | Disposable | Disposable | Disposable |
Latex-free | Latex-free | Latex-free | Latex-free | Latex-free | Latex-free | Latex-free | Latex-free | Latex-free | Latex-free | Latex-free | Latex-free | Latex-free | Latex-free |
Site | Finger, Toe | Finger, Toe | Finger | Finger, Toe | Finger | Finger | Finger | Finger | Finger | Forehead | Finger | Finger | Finger |
Life Stage | Neonate, Adult | Neonate, Adult | Neonate, Adult | Neonate, Adult | Infant | Infant | Infant | Pediatric | Pediatric | Pediatric, Adult | Adult | Pediatric | Infant |
Compatible With | Masimo Pulse Oximeter Devices | Masimo Pulse Oximeter Devices | Masimo Pulse Oximeter Devices | Masimo Pulse Oximeter Devices | Masimo Pulse Oximeter Devices | Masimo Pulse Oximeter Devices | Masimo Pulse Oximeter Devices | Masimo Pulse Oximeter Devices | Masimo Pulse Oximeter Devices | Masimo Pulse Oximeter Devices | Masimo Pulse Oximeter Devices | Masimo Pulse Oximeter Devices | Masimo Pulse Oximeter Devices |
Sterile | Non-sterile | Non-sterile | Non-sterile | Non-sterile | Non-sterile | Non-sterile | Non-sterile | Non-sterile | Non-sterile | Non-sterile | Non-sterile | Non-sterile | Non-sterile |
For Use With | Masimo LNCS Cables | Masimo LNCS Cables | Masimo LNCS Cables | Masimo LNCS Cables | Masimo LNCS Cables | Masimo LNCS Cables | Masimo LNCS Cables | Masimo LNCS Cables | Masimo LNCS Cables | Masimo LNCS Cables | Masimo LNCS Cables | Masimo LNCS Cables | Masimo LNCS Cables |
Use Frequency | Single Patient Use | Single Patient Use | Single Patient Use | Single Patient Use | Single Patient Use | Single Patient Use | Single Patient Use | Single Patient Use | Single Patient Use | Single Patient Use | Single Patient Use | Single Patient Use | Single Patient Use |
Uses | for Measuring SpO2, only | for Measuring SpO2, only | for Measuring SpO2, only | for Measuring SpO2, only | for Measuring SpO2, only | for Measuring SpO2, only | for Measuring SpO2, only | for Measuring SpO2, only | for Measuring SpO2, only | for Measuring SpO2, only | for Measuring SpO2, only | for Measuring SpO2, only | for Measuring SpO2, only |
