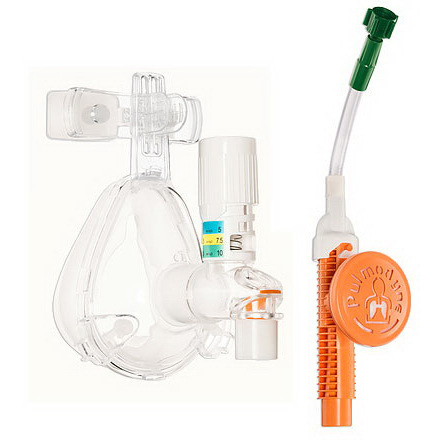

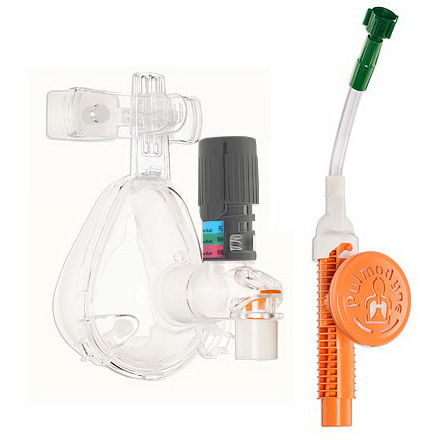

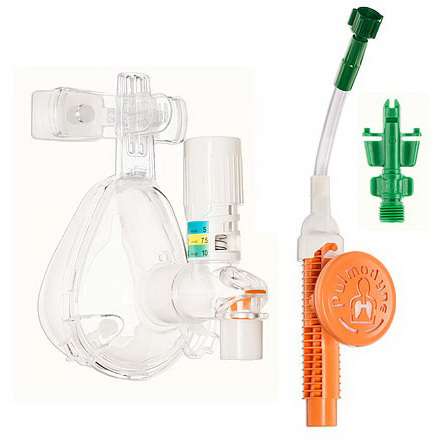

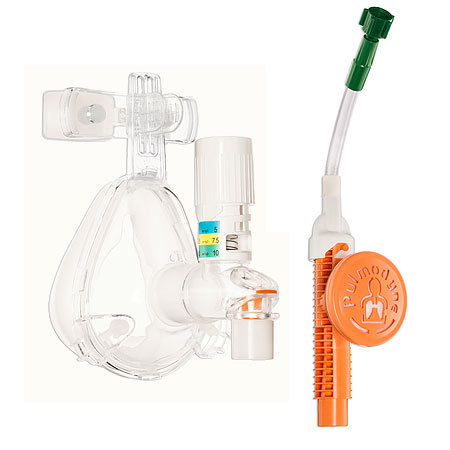

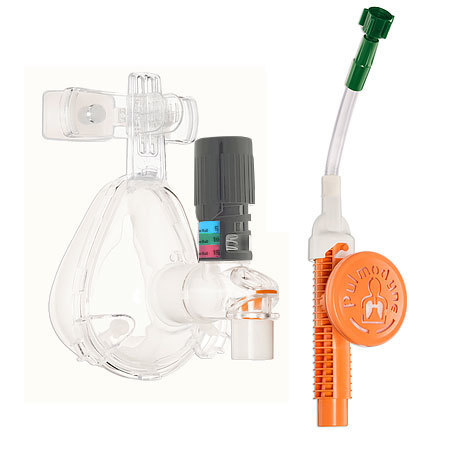

O2-MAX Fixed Flow CPAP System
The O2-MAX™ is a disposable CPAP system for use in a wide range of respiratory distress conditions. It is available as a variable or fixed system. The variable system includes a variable flow generator that delivers oxygen from 30% to 100% FiO2 with flow rates up to 140 l/m and a 120” (3 m) O2 hose and DISS connector. The fixed system includes a fixed flow generator that delivers 30% FiO2 with flow rates up to 140 l/m and a 4” (100 mm) O2 hose and DISS connector.
The O2-MAX is compatible with the 3-SET™ (Simple Effective Titration) O2-CPAP™ Valve with adjustable pressure settings from 5.0, 7.5 and 10.0 cm H2O and 5-SET™ O2-CPAP™ Valve with adjustable pressure settings from 5.0, 7.5, 10.0, 12.5, and 15.0 cm H2O. The valve allows the clinician to titrate the level of CPAP without carrying additional equipment.
O2-MAX™ System Features:
- BiTrac ED Full Face Mask and head strap or head gear
- Expandable (up to 72 inches) Anti-Asphyxia Circuit w/10 cm CPAP Valve
- FIXED Flow Generator with 4 inch (100mm) O2 Hose and DISS Connector
- Adapter (22mm Male x 30mm Male)
Are you sure you want to clear this supply list?
|
|
|
|
|
|
|
|
|---|---|---|---|---|---|---|---|
| Product # | 313-7556EA | 313-7556-1EA | 313-7756EA | 313-7557EA | 313-7555EA | 313-7755EA | 313-7554EA |
| Life Stage | Adult | Adult | Adult | Adult | Adult | Adult | Adult |
| Connector Type | Does not include connector | Ohmeda Quik-Connect | Does not include connector | Does not include connector | Does not include connector | Does not include connector | Does not include connector |
| FiO2 | 30% | 30% | 30% | 30% | 30% | 30% | 30% |
| Tubing Type | Expandable | Expandable | Expandable | Expandable | Expandable | Expandable | Expandable |
| Nebulizer | Does not include nebulizer | Does not include nebulizer | Does not include nebulizer | Does not include nebulizer | Does not include nebulizer | Does not include nebulizer | Does not include nebulizer |
| Valve | 3-SET PEEP Valve (5, 7.5, 10cm H2O) | 3-SET PEEP Valve (5, 7.5, 10cm H2O) | 3-SET PEEP Valve (5, 7.5, 10cm H2O) | 5-SET PEEP Valve (5, 7.5, 10, 12.5, 15cm H2O) | 3-SET PEEP Valve (5, 7.5, 10cm H2O) | 3-SET PEEP Valve (5, 7.5, 10cm H2O) | 5-SET PEEP Valve (5, 7.5, 10, 12.5, 15cm H2O) |
| Mask Size | Adult Medium | Adult Medium | Adult Medium | Adult Medium | Adult Large | Adult Large | Adult Large |
| Disposable | Disposable | Disposable | Disposable | Disposable | Disposable | Disposable | Disposable |
