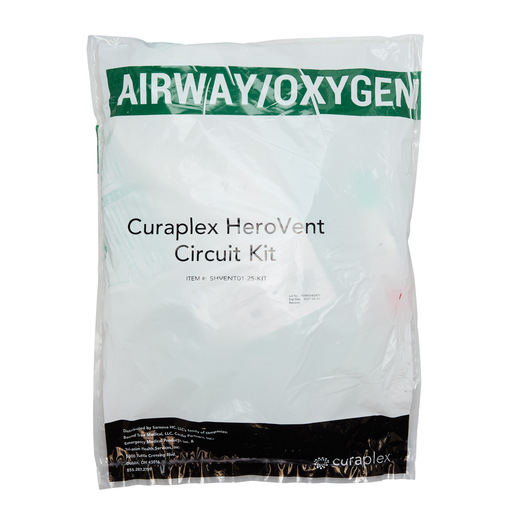

Compatible with HeroVent® Emergency and Transport Ventilator.

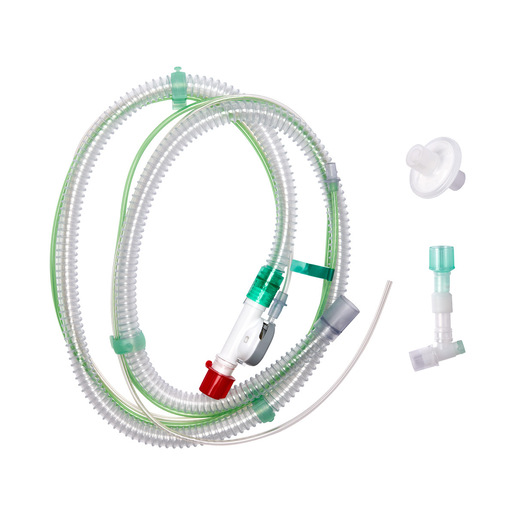

Kit Includes:

• Curaplex® Bacterial and Viral Depth Filter, >125mL, 15/22 X 15M22F
• Breathing System with Monitoring Line, approx 1.8m, 22mm Smoothbore, Exhalation Valve, Single Limb
• Superset™ Double Swivel Catheter Mount, 22mm ID, Flip Top Cap

The HeroVent® enables precise, reliable ventilation in emergency settings.

Engineered to military-grade standards, it incorporates the most recommended volume control mode and is the first ventilator with a full-color interactive display providing step-by-step video guidance for circuit setup and testing.

Designed for operational readiness, the HeroVent® uses non-proprietary circuits for simplified maintenance and supports seamless future upgrades. It integrates all mission-critical functions and delivers advanced ventilation consistent with American Heart Association recommendations.

What’s Included:

• Ventilator
• Rechargeable Battery
• A/C Power Supply
• Flow Sensor Cable
• Disposable Flow Sensor
• Oxygen Enrichment Kit

Ventilation Modes:

• A/C: Assist Control (Volume Control)
• SIMV: Synchronized Intermittent Ventilation (Volume Control)
• CPAP: Continuous Positive Airway Pressure
• Bilevel Positive Airway Pressure
• NIV: Non-Invasive Ventilation
• PS: Pressure Support

Physical:

• Weight: 3lbs with battery installed
• Size: 8" x 6.5" x 2.25"
• Screen Size: 5" Color Touchscreen
• Ingress Protection: IP 54
• Disposable Battery Operating Time: 6 Hours
• Rechargeable Battery Operating Time: 8 Hours

Monitoring Parameters:

• Tidal Volume: 0 to 2000mL
• FiO2: 14-100%
• Respiratory Rate (RR): 0 to 100 BPM
• Peak inspiratory pressure (PIP)
• PEEP: 0 to 20 cmH2O
• Flow Rate: 1 to 9 LPM
• EtCO2 with CO2 Accessory: 0 to 10
