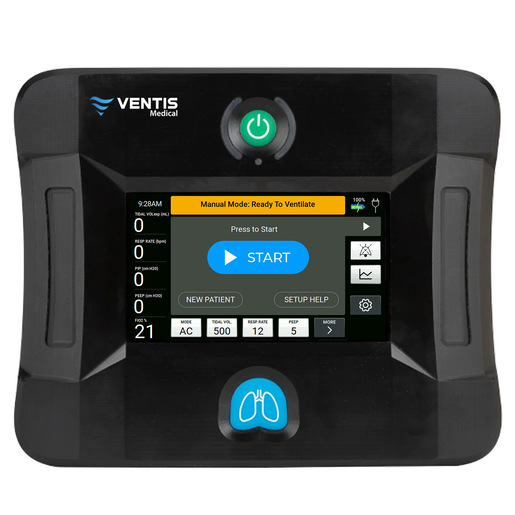

HeroVent® Emergency and Transport Ventilator Packages
The HeroVent® enables precise, reliable ventilation in emergency settings.
Engineered to military-grade standards, it incorporates the most recommended volume control mode and is the first ventilator with a full-color interactive display providing step-by-step video guidance for circuit setup and testing.
Designed for operational readiness, the HeroVent® uses non-proprietary circuits for simplified maintenance and supports seamless future upgrades. It integrates all mission-critical functions and delivers advanced ventilation consistent with American Heart Association recommendations.
What’s Included:
- Ventilator
- Rechargeable Battery
- A/C Power Supply
- Flow Sensor Cable
- Disposable Flow Sensor
- Oxygen Enrichment Kit
Ventilation Modes:
- A/C: Assist Control (Volume Control)
- SIMV: Synchronized Intermittent Ventilation (Volume Control)
- CPAP: Continuous Positive Airway Pressure
- Bilevel Positive Airway Pressure
- NIV: Non-Invasive Ventilation
- PS: Pressure Support
Physical:
- Weight: 3lbs with battery installed
- Size: 8" x 6.5" x 2.25"
- Screen Size: 5" Color Touchscreen
- Ingress Protection: IP 54
- Disposable Battery Operating Time: 6 Hours
- Rechargeable Battery Operating Time: 8 Hours
Monitoring Parameters:
- Tidal Volume: 0 to 2000mL
- FiO2: 14-100%
- Respiratory Rate (RR): 0 to 100 BPM
- Peak inspiratory pressure (PIP)
- PEEP: 0 to 20 cmH2O
- Flow Rate: 1 to 9 LPM
- EtCO2 with CO2 Accessory: 0 to 10
Are you sure you want to clear this supply list?
|
|
|
|---|---|---|
| Product # | 2421-2000 | 2421-2010 |
| Volume | 0 to 2000mL Tidal Volume | 0 to 2000mL Tidal Volume |
| With | Includes Ventilator, Rechargeable Battery, A/C Power Supply, Flow Sensor Cable | Includes Ventilator, Rechargeable Battery, A/C Power Supply, Flow Sensor Cable |
| PEEP | 0 to 20 cmH2O | 0 to 20 cmH2O |
| Patient Size | Adult (≥78lbs / 35kg) | Adult (≥78lbs / 35kg) |
| Flow Rate | 1 to 9 LPM | 1 to 9 LPM |
| Display | 5in, High-resolution color touchscreen | 5in, High-resolution color touchscreen |
| Operating Temperature | -10C to 40C | -10C to 40C |
| FiO2 | 14-100% | 14-100% |
| Weight | 4.5lb | 4.5lb |
| Battery | Rechargeable, 5+ hours | Rechargeable, 5+ hours |
| Sensor Type | Flow Sensor, Disposable | Flow Sensor, Reusable |
| Dimensions | 12in x 8in x 6in | 12in x 8in x 6in |
