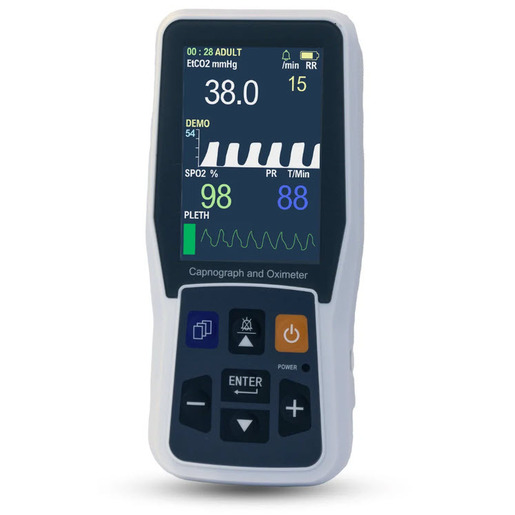

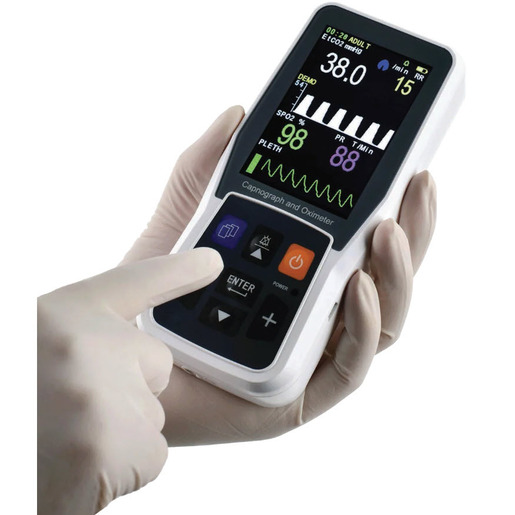

Step into the world of advanced medical monitoring with the innovative capnograph and oximeter handheld device. Going beyond traditional devices by seamlessly integrating oximetry and capnography capabilities, our device provides invaluable insights for healthcare professionals – efficiently measuring end-tidal carbon dioxide (EtCO2), respiration rate, pulse, and blood oxygen saturation (SpO2) levels.

Designed with portability and functionality in mind, the handheld capnograph and oximeter is a convenient all-in-one solution, eliminating the need for multiple devices during patient monitoring. Whether you are in a clinical setting or responding to medical emergencies in the field, this elegantly designed tool offers ease of use combined with comprehensive monitoring capabilities.

For added convenience, we offer a range of capnograph accessories to complement your patient needs, ensuring that you have everything required for accurate and efficient data collection. Optimize patient care outcomes with our handheld capnograph and oximeter, an indispensable tool for medical professionals.

Specifications:

• Device Dimensions: 72mm W x 155mm H x 40mm D
• Concentration of EtCO2 Range: 0.0-19.7% (V/V), 0-150mmHg,or 0-20kPa, accuracy: deviation˘±2mmHg when EtCO2 concentration in 0
• Total System response time < 1second
• Respiration rate range: 3 ~150 times/min, deviation: the bigger of ±1% or ±1bpm
• Pulse range: 30 times/min~250times/min, Deviation: when 30times/min~40times/min, ±2times/min (absolute value); when 41times/min~250times/min, ±5%(relative value)

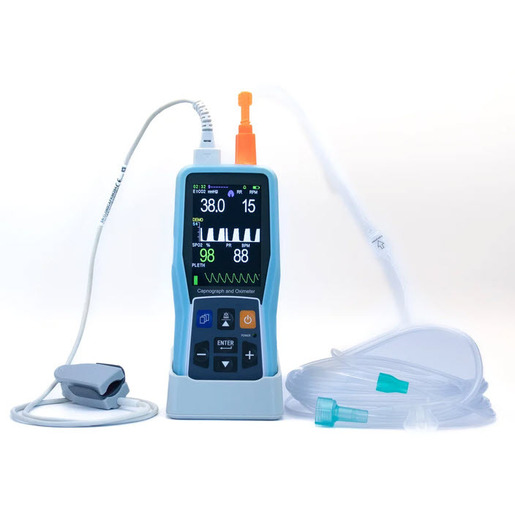

Includes:

• Device
• 1 Main Set
• 6 Water Filter
• 1 Sampling line
• 1 Airway adapter
• 1 USB cable
• 1 AC/DC adapter (US standard)
• 1 Nasal CO2 Sampling Cannula
• 1 SpO2 probe
• 1 Silicon cover
• 1 canvas bag
• 1 support base
• 1 PC-900B Manual
